3 ton eclectic forklift truck 3.0ton battery forklift 3ton lift truck

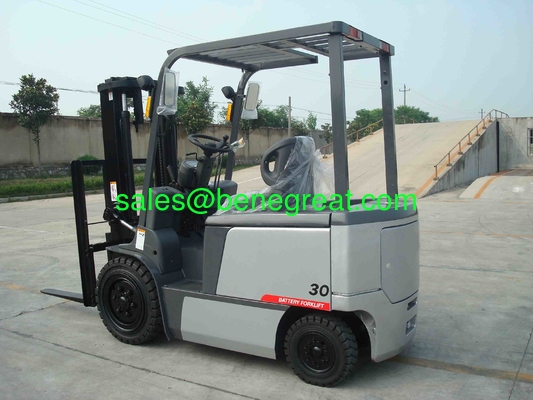

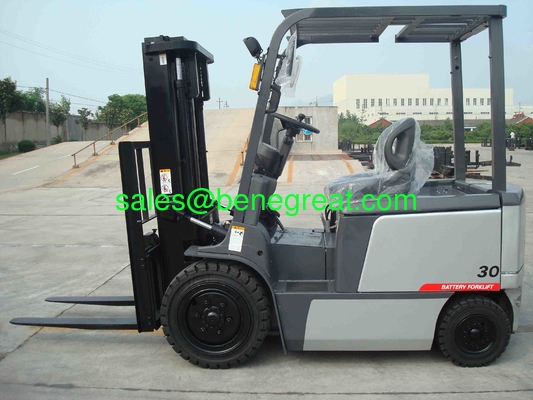

Description
BENE can produce 1.5-4T electric forklift trucks for customers. The electric counterbalance forklift truck adopts storage battery to provide power. It is suitable for those areas that needs high requirements of environmental protection, such as indoor place and warehouse. This electric forklift is non-polluting and energy-saving. It adopts drive system with independent design, low noise and high efficiency. We also select imported motor and electric control units to ensure high reliability of hydraulic parts. Our company can also customize various electric forklift trucks according to customers' requirements. Lemon yellow or silver electric counterbalance forklift truck is optional for customers.

Applications
Electric forklift trucks are ideal material handing equipment for either indoor or outdoor applications. They can be widely used in workshops, warehouses and supermarkets for goods transferring. They are also ideal for using in food, clothing, knitwear and other woven products.

• Advantages
• Our electric counterbalance forklift trucks have passed ISO9000 certification and CE certification.
• BENE owns a technical development team who pursuits the best cost-effective products and provides high quality and timely service.

• Performance of 1.5-4T Electric Forklift Truck
• BENE electric counterbalance forklift truck has a compact body structure. It is easy and convenient to operate.
• The width of new 1.5 ton forklift is narrower than standard cargo pallets (1100 mm). It can move vehicles freely in a very narrow working space. The customers' workshop space can be fully utilized.
• Electric forklift truck owns compact body width (1070mm) and minimum turning radius (1780mm).
• Our electric counterbalance forklift trucks are equipped with getting-on pedals and suspending seat, which can reduce operators' fatigue and make them feel comfortable.
• We provide three operation modes. They can be converted to the most appropriate operation mode.
• BENE electric forklift truck enjoys the advantage of low maintenance cost.

• FB30 TECHNOLOGY SPECIFICATION
  Specifications	1	Manufacturer			BENE
  	2	Model			FB30
  	3	Load capacity		kg	3000
  	4	Load center		mm	500
  	5	Power unit			Battery
  	6	Operator type			Driver/seat
  	7	Tire type			Pneumatic
  	8	Wheel(x=driving)	Front/rear		2X/2
  Dimensions	9	Max. lifting height		mm	3000
  	10	Free lift		mm	165
  	11	Fork size	L*W*T	mm	1070*125*45
  	12	Tilt range	Mast forward/backward	deg	6/12
  	13	Overall length(without fork)		mm	2510
  	14	Total width		mm	1225
  	15	Mast height (fork lowering)		mm	2075
  	16	Overall height fork raised	With backrest	mm	4250
  	17	Height to head guard		mm	2190
  	18	Turning raduis(outside)		mm	2140
  	19	Load distance		mm	480
  	20	Min. right angle stacking aisle	not add load length&clearence	mm	2625
  Performance	21	Speed	Max Travelling full load	km/h	13.5
  			Max Travelling no load	km/h	15
  			Lifting full load	mm/s	240
  			Lifting no load	mm/s	450
  	22	Gradeability	full load	%	12.5
  Weight	23	Truck weight(with standard battery)		kg	4660
  	24	Weight distribution	Full load front/rear	kg	6770/890
  	25		No load front/rear	kg	1885/2775
  Chassis&Wheels	29	Tires	Number	front/rear	2/2
  	30		Model	front axle	28*9-15-12PR
  	31			rear axle	18*7-8-14PR
  	32	Wheelbase		mm	1600
  	33	Tread	Front/rear	mm	1000/950
  	34	Ground clearence	At lowest point(mast)	mm	140
  			Frame	mm	120
  	35	Brake	Service brake		Hydraulic-foot pedal
  			Parking brak		Mechanical-hand lever
  Drive Line	36	Battery	Voltage/capacity	V/AH/5hr	72V-480
  	37		Weight with box (standard)	kg	1220
  	38	Electric motor	AC Driving motor	kw	16.6
  	39		DC Hydraulic driving motor	kw	10
  	40		AC Hydraulic driving motor (as option)	kw	13.4
  	41	Control type		Driving AC , lifting DC Driving AC , lifting AC(as option )
  	42	Operating pressure		kg/cm²	175

•
