Product Details:
Payment & Shipping Terms:
|
Color: | Yellow | Load Center: | 500mm |
---|---|---|---|
Mast Height: | 3000mm | Engine: | ISUZU C240 |
Transmission: | Hydraulic |

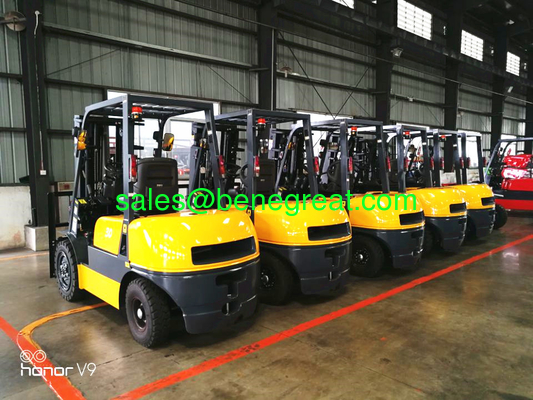

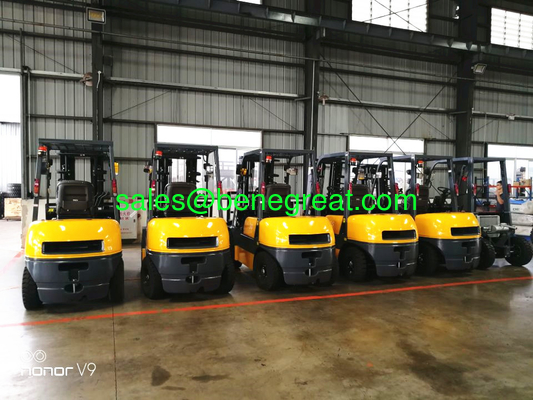

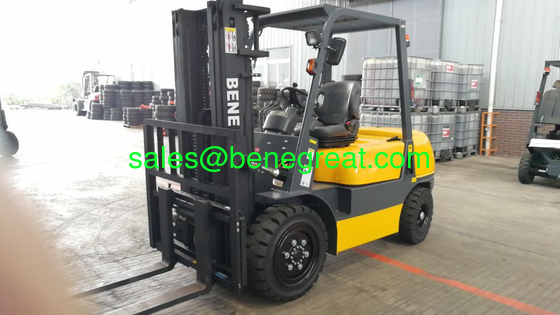

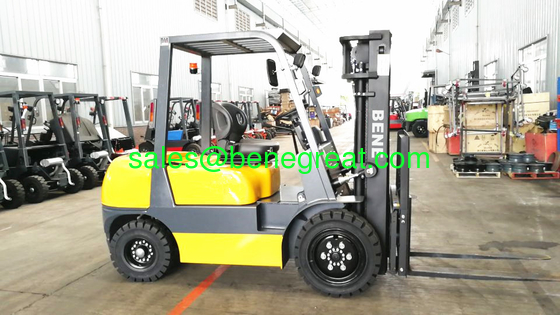

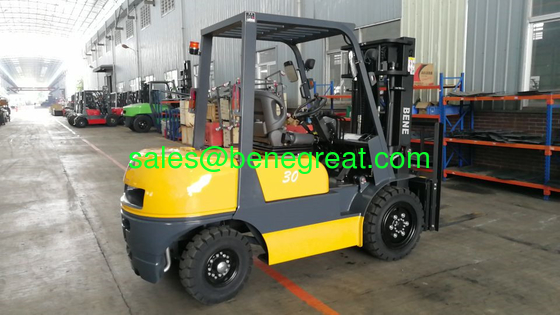

2.5t diesel forklift FD25T forklift 2.5ton diesel forklift with ISUZU C240 engine price
Description
2.0-2.5T diesel forklift is designed and manufactured for lifting and transporting cargoes. In consideration of exhaust gas emission and noise problem, it is usually suitable for outdoors, workshops or other places with not special requirements for exhaust gas emission and noise. This diesel powered forklift truck is configured with diesel engine that enjoys the advantages of good performance, strong overload ability, powerful long-time working capacity, fast speed and low fuel cost. The 2.0-2.5T diesel forklift is available with the capacity of 2000 kg, advanced hydraulic and cooling system. TEU diesel powered forklift trucks have obtained 13 patent certificates. Additionally, our company belongs to national level high-tech enterprise and is the engineering and technological research center of industrial forklift truck. Our company has received ISO9000 certificate and CE certificate.
Parameters
SPECIFICATION | Item | FD20T | FD25T | |
Load capacity | kg | 2000 | 2500 | |
Load center | mm | 500 | ||
DIMENSIONS | Max. lifting height(VM300) | mm | 3000 | |
Free lift(VM300) | mm | 160 | ||
Fork size (L×W×T) | mm | 1070*122*40 | ||
Overall length(without fork) | mm | 2460 | 2530 | |
Total width | mm | 1150 | ||
Mast height (fork lowering) | mm | 1995 | ||
Overall height fork raised | mm | 4030 | ||
Height to head guard | mm | 2120 | ||
Truck weight | kg | 3330 | 3670 | |
TIRES | front/rear | 2/2 | ||
front axle | 7.00-12-12PR | |||
rear axle | 6.00-9-10PR | |||
ENGINE | Model | ISUZU C240 | Chinese CA498 | |
Rated power | kw/rpm | 34.3/2500 | 42/2450 | |
Rated torque | Nm/rpm | 138/1800 | 190/1800 | |
Number of cylinders | 4 | 4 | ||
Dislacement | L | 2.369 | 3.168 |
Optional Engine
FD20,FD25: Chinese A490,Chinese CA498,Isuzu C240,Mitsubishi S4S,Yanmar 4TNE92
Main Parts
TEU 2.0-2.5T diesel forklift consists of engine, transmission, operating control device, working device, hydraulic system and electric system. The engine, as the power unit of the forklift truck, can convert the thermal energy into mechanical energy. The transmission equipment includes clutch, gearbox, main transmission, differential mechanism and axle shaft.
Operation Attentions of TEU 2.0-2.5T Diesel Forklift
Customers should fully know the working environment, the maximum load and the maximum lifting height of the 2T diesel powered forklift truck, and then choose the appropriate models and configurations.
