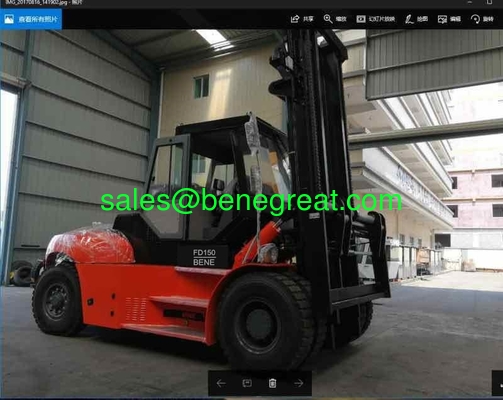

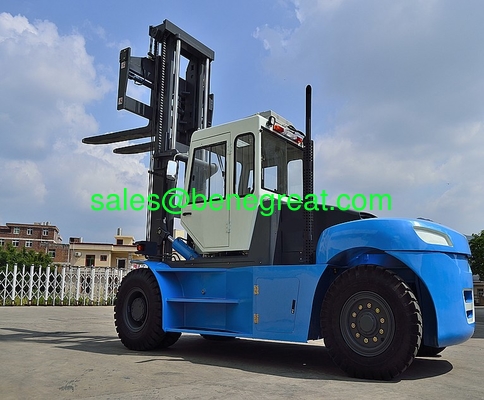

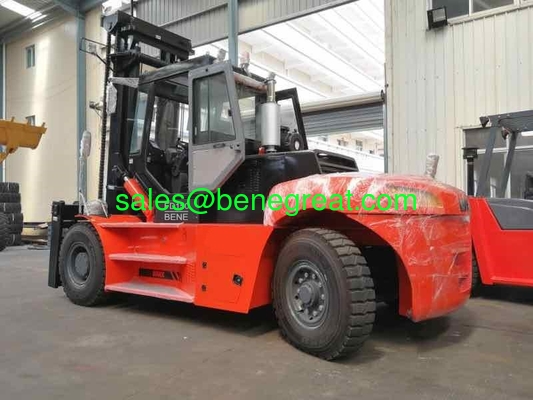

BENE 15ton /16ton FD160 diesel forklift truck 16 ton heavy diesel forklift for sale
Engine: 15 ton diesel forklift truck use Yuchai Engine, low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection
Steering axle: 15 ton diesel forklift truck adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable
Transmission & torque convert: 15 ton diesel forklift truck matched with imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation
Hydraulic system: 15 ton diesel forklift truck has double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Pipeline: high pressure oil line impact resistance, wear resistance and long service life
Tyre: sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable
Fork: use famous brand Fork, with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity
Mast: 3.5-6m box-type internal-external mast, special all-round roller bearings, increase lifting performance
Item |
Specification |
Unit |
|
General |
1 |
Model |
|
FD150 |
2 |
Power Type/model |
|
Diesel |
3 |
Rated Capacity |
Kg |
15000 |
4 |
Load Center |
mm |
900 |
Dimensions |
5 |
Lift Height |
mm |
3500 |
6 |
Fork Size(LxWxT) |
mm |
2000×220×90 |
7 |
Fork Spread(outside)(Min./Max) |
mm |
540/2260 |
8 |
Mast Tilt Angle(F/R) |
deg |
6°/12° |
9 |
Fork Overhang |
mm |
800 |
10 |
|
Length without forks |
mm |
5400 |
11 |
Overall Width |
mm |
2550 |
12 |
Mast Lowered Height |
mm |
3460 |
13 |
Overhead Guard Height |
mm |
3300 |
14 |
Outer turning Radius |
|
mm |
5050 |
Performance |
15 |
Speed(Unload/Load) |
Travel |
km/h |
30/26 |
16 |
Lifting |
mm/s |
300 |
17 |
Max.gradeability(Load) |
% |
20 |
18 |
Max.drawbar pull(Load) |
KN |
120 |
19 |
service Weight |
kg |
21000 |
Wheels&Tires |
20 |
Tire |
Front |
|
4×12.00-24-18PR |
21 |
Rear |
|
2×12.00-20-18PR |
22 |
Tread |
Front |
mm |
1850 |
23 |
Rear |
mm |
2130 |
24 |
Wheelbase |
mm |
3600 |
25 |
Ground Clearance(Under mast) |
mm |
260 |
Power & Transmission |
26 |
Battery |
Voltage/Capacity(5HR) |
VA/h |
2X12/120 |
27 |
Engine |
Model |
|
YC6J175-T302 |
28 |
Manufacture |
|
YUCHAI |
29 |
Rated Output |
Kw |
129 |
30 |
Rated Torque |
N.m |
710 |
31 |
No.Of Cyinder |
|
6 |
32 |
Bore*stroke |
mm |
102/120 |
33 |
Displacement |
L |
6.5 |
34 |
Transmission |
Type |
|
Fluid Torque Converter |
35 |
StageFWD/RVS |
|
2/1 |
|
36 |
Operating Pressute |
Mpa |
19 |
