Lonking LG850 wheel Loader 5ton wheel loader with log grapple

China Lonking LG850 wheel Loader 5ton wheel loader with log grapple supplier
Lonking LG850 wheel Loader 5ton wheel loader with log grapple supplier Lonking LG850 wheel Loader 5ton wheel loader with log grapple supplier Lonking LG850 wheel Loader 5ton wheel loader with log grapple supplier Lonking LG850 wheel Loader 5ton wheel loader with log grapple supplier Lonking LG850 wheel Loader 5ton wheel loader with log grapple supplier Lonking LG850 wheel Loader 5ton wheel loader with log grapple supplier Lonking LG850 wheel Loader 5ton wheel loader with log grapple supplier

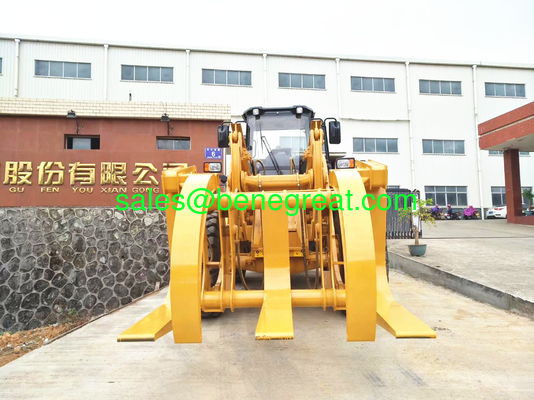

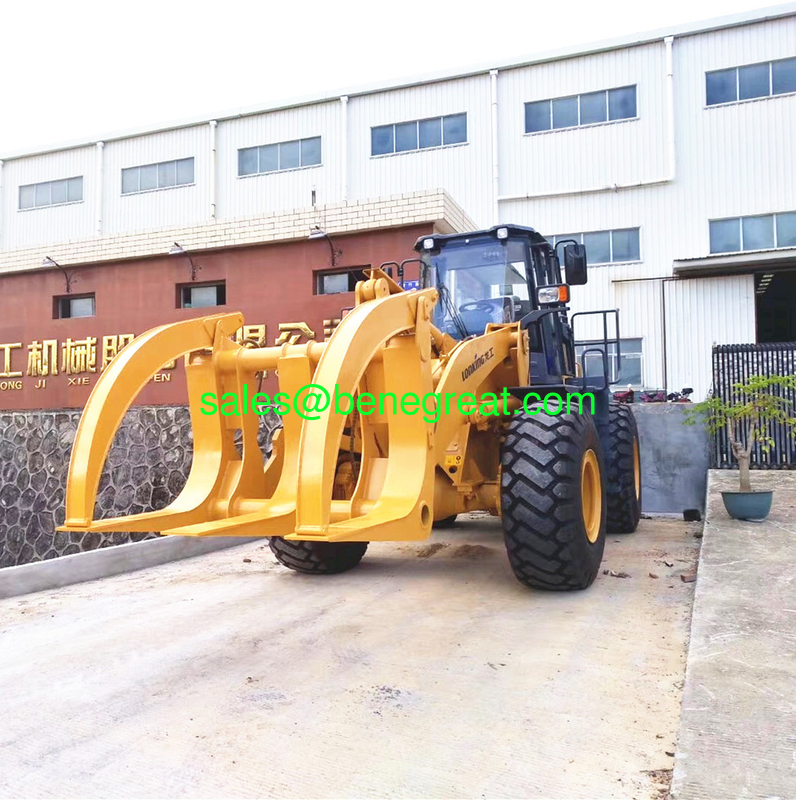

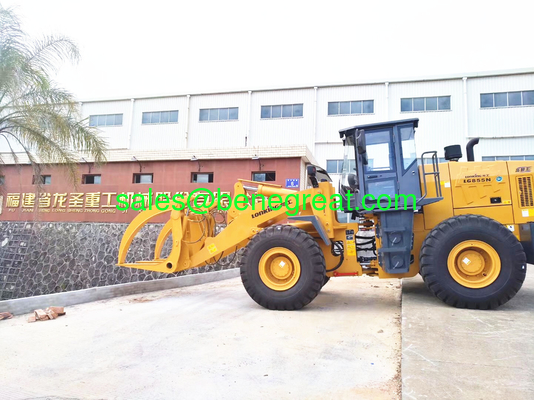

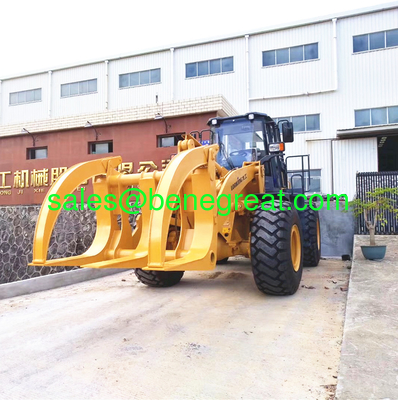

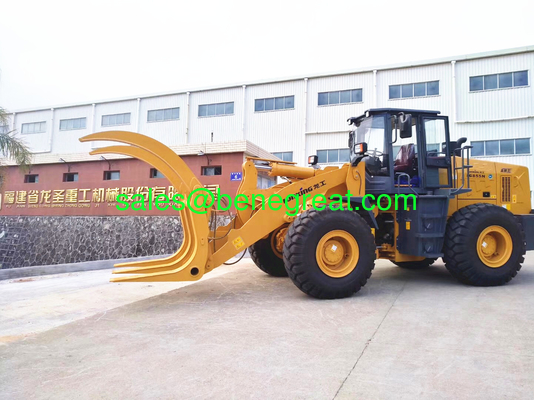

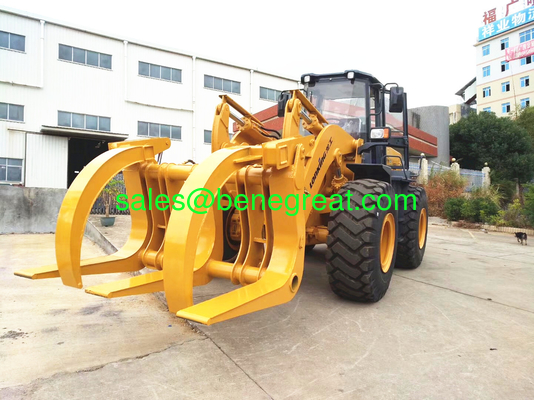

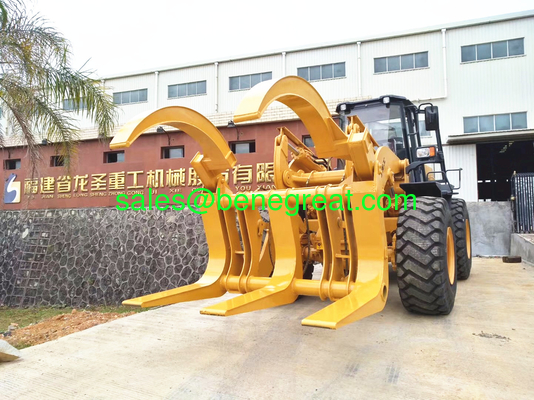

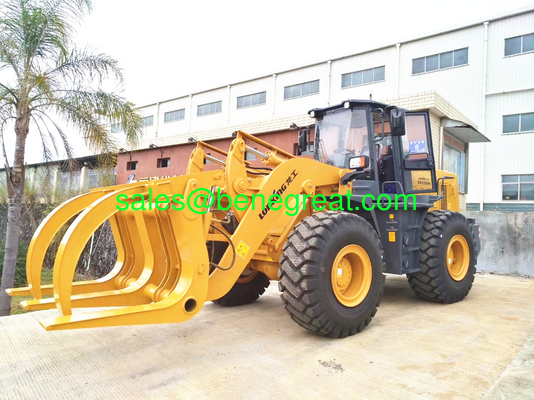

Large Image :  Lonking LG850 wheel Loader 5ton wheel loader with log grapple

Product Details:

Place of Origin: CHINA
Brand Name: LONKING
Certification: CE
Model Number: LG855N

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: 50000USD
Packaging Details: nude
Delivery Time: 20-30days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 999units/per month
Contact Now
Detailed Product Description

Lonking LG850 wheel Loader 5ton wheel loader with log grapple

POWERFUL WEICHAI ENGINE
LONKING TRANSMISSION
LONKING AXLES
JOYSTICK CONTROL
ROPS&FOPS CABIN
VARIETY WITH ATTACHMENT
CONVENIENT MAINTENANCE



NO. DESCRIPTION UNIT DIMENSIONS
A Overall Height–Bucket Raised mm 7171
B Bucket Pin Height at Max.Lift mm 5560
C Dump Clear an ceat Max.Lift(45°) mm 4520
D Reach at Max.Liftand45°Dump mm 2815
E Rack Back Angleat Carry ° 45
F Rac kBack Angleat Ground ° 44
G Digging Depth mm 50
H Rack Back Angleat Max.Lift ° 51
I Dump Angleat Max.Lift ° 40
J Carry Height mm 400
K Ground Clearance mm 408
L Center Line of Front Axleto Hitch mm 1615
M Wheel Base mm 3230
N Overall Length mm 10320
O Departure Angle ° 28
P Height to Top of Cab mm 3380
Q Overall Width over Bucket mm 3034
R Min.Turning Radius over Bucket mm 8454
S Min.Turning Radius over Tires mm 6537.5
T Steering Angle–Left/Right ° 35
U Width at Tread Center mm 2240
V Over all Width overTires mm 2835
OVERALL DATA
Bucket Capacity 3.0m³
Rated Payload 2500kg
Operating Weight 17900±300kg
Traction Force 160±3kN
Breakout Force 135±3kN
L×W×H 10320×3034×3380mm



ENGINE&ELECTRICAL SYSTEM
Maker/Model WEICHAI/WD10G220E21
Emission Standard EPA (TierⅡ)/NationalⅡ
Engine Type 4 Stroke,Turbocharged,Water-cooled,Direct Injection,Diesel Engine
Rated Power 162kW(220hp)/2200rpm
Maximum Torque 860N·m/1400-1600rpm
Bore x Stroke (mm) 126×130
No. of Cylinders/Displacement 6/9.726L
Compression Ratio 17
Air Cleaner Three Stage Air Cleaner with Cyclone Pre-cleaner
Alternator 55Amp
Battery 2-24V/120Ah
Starting Motor 24V/7.5kW
Heating Capacity (W)-OPTIONAL 5000W
Cooling Capacity (W)-OPTIONAL 4700W





lonking LG850 wheel Loader 5ton wheel loader with log grapplelonking LG850 wheel Loader 5ton wheel loader with log grapplelonking LG850 wheel Loader 5ton wheel loader with log grapplelonking LG850 wheel Loader 5ton wheel loader with log grapplelonking LG850 wheel Loader 5ton wheel loader with log grapple
