Engine: | Yunnei | Engine Power: | 63KW |
---|---|---|---|
Certificate: | CE | Tyre: | 16/70-20 |

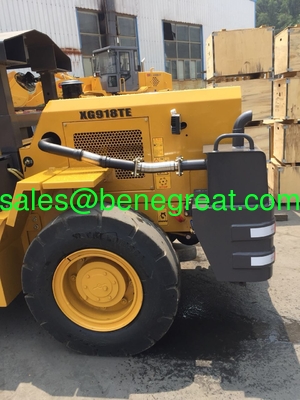

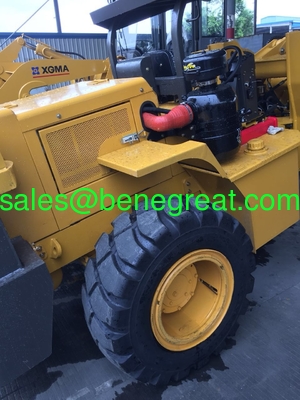

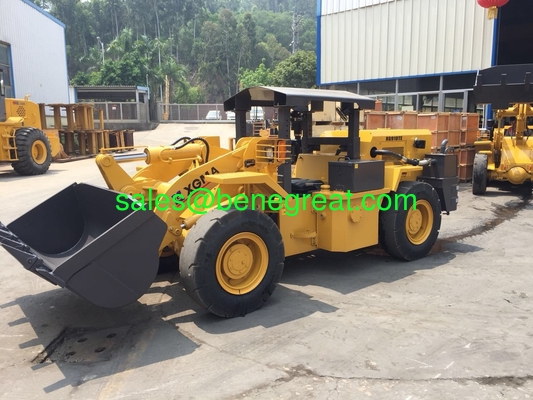

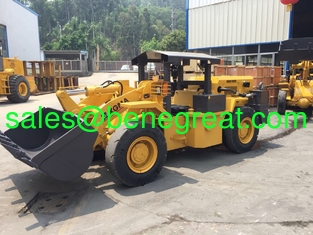

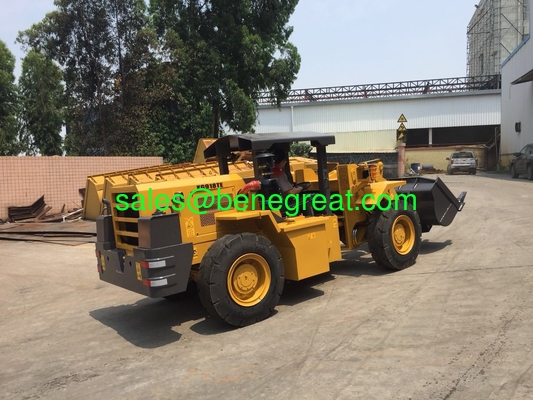

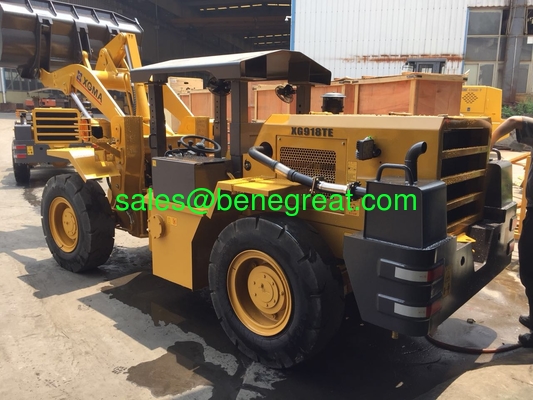

2ton underground wheel loader with exhaust purifier underground loader with low price
★Small Wheel Loader with 0.9 cbm, 2.0 ton capacity, 60 kw YTO 4108 four cylinder Diesel Engine.
★Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse se gears makes operate easy.
★Hydrodynamic transmission and torque converter, load sensing fully hydraulic steering system, easy operation.
★Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
★Integral, luxury instrument board, and new, luxury cabin.
Item
|
Specification
|
Item
|
Specification
|
Bucket capacity
|
0.9 m3
|
Rated power
|
60kW/2400rpm
|
Rated load
|
2000 kg
|
Tyre
|
15/70-18
|
Dumping height
|
1625 mm
|
Overall dimensions
|
5200*1950*1500 mm
|
Wheel thread
|
1650 mm
|
Operating weight
|
5200kg
|
Wheel base
|
2300 mm
|
Min. ground clearance
|
230 mm
|
Max. Dumping reach
|
980 mm
|
Max. speed
|
22 km/h
|
