Home ProductsDiesel forklift

BENE 3ton diesel forklift with isuzu engine 3t forklift truck with 4.5m triplex mast

A very professional company,good products and good service!

—— Kelvin ASH

It was a nice pleasant cooperation, And I hope there will be more cooperation opportunities in the future

—— Malcolm Higgins

A good team with much experience in these machines.

—— Jose E Angulo

I'm Online Chat Now

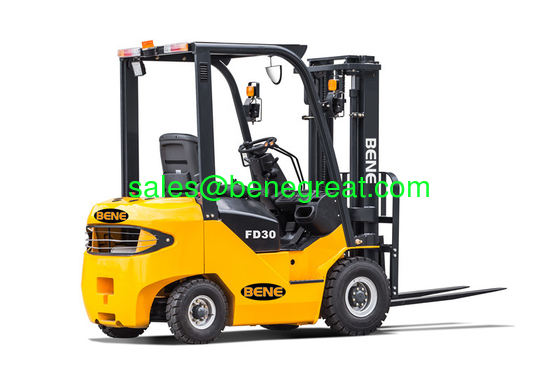

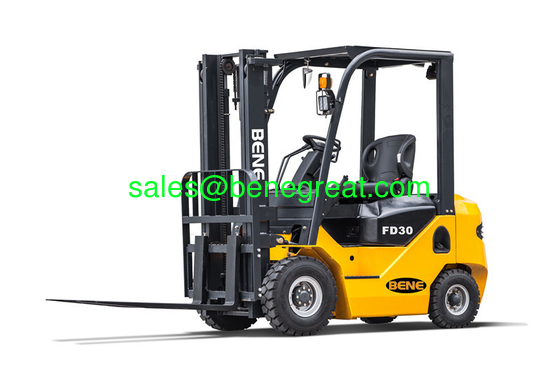

BENE 3ton diesel forklift with isuzu engine 3t forklift truck with 4.5m triplex mast

China BENE 3ton diesel forklift with isuzu engine 3t forklift truck with 4.5m triplex mast supplier
BENE 3ton diesel forklift with isuzu engine 3t forklift truck with 4.5m triplex mast supplier BENE 3ton diesel forklift with isuzu engine 3t forklift truck with 4.5m triplex mast supplier

Large Image :  BENE 3ton diesel forklift with isuzu engine 3t forklift truck with 4.5m triplex mast

Product Details:

Place of Origin: China
Brand Name: BENE
Certification: CE
Model Number: FD30T

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 7000USD --10000USD per unit
Packaging Details: nude
Delivery Time: in 10days
Payment Terms: L/C, T/T
Supply Ability: 999units per month
Contact Now
Detailed Product Description
Color: Yellow Engine: ISUZU C240
Mast Height: 3000mm Transmission: Hydraulic

3.0ton diesel forklift with isuzu engine 3.0t forklift truck with triplex mast



Description
3.0-4.0T diesel forklift truck is well known for its good stability and flexible utility. It is usually used to lift and stack cargoes in the outdoors. Compared to gasoline engine, diesel engine possesses better power performance and low fuel charge. The engine is not easy to flame out even at low speed. It owns strong overload capacity and long-term working capacity.Our 3.0-4.0T diesel forklift trucks adopt DACHAI, YANMAR, MITSUBISHI and ISUZU engines with excellent hydraulic system. They have been proved to be economic, powerful, safe, durable and reliable.

Parameters

SPECIFICATION Item FD30T/C FD35T/C FD40T/C
Load capacity kg 3000 3500 4000
Load center mm 500
DIMENSIONS Max. lifting height(VM300) mm 3000
Free lift(VM300) mm 150
Fork size (L×W×T) mm 1070*125*45 1070*125*50 1070*150*50
Overall length(without fork) mm 2705 2760 2870
Total width mm 1225 1285 1365
Mast height (fork lowering) mm 2075 2150
Overall height fork raised mm 4250
Height to head guard mm 2140
Truck weight kg 4380 4780 5050
TIRES front/rear   2/2
front axle   28*9-15-12PR 250-15-16PR
rear axle   6.50-10-10PR
ENGINE Model   MITSUBISHI S4S ISUZU C240 ISUZU 4JG2
Rated power kw/rpm 35.4/2250 34.3/2500 44.8/2450
Rated torque Nm/rpm 170/1700 138/1800 186/1800
Number of cylinders   4 4 4
Dislacement L 3.059 2.369 3.059

Optional Engine
FG30,FG35: NISSAN K25

Components
3.0-4.0T diesel counterbalance forklift truck is mainly composed of engine, transmission, operating control device, working device (inside and outside door frame, fork mounting, pallet fork, lifting chain, roller, pulley and others), hydraulic system and electrical system.

  • Advantages of 3.0-4.0T Diesel Forklift Truck
  • It can be equipped with several diesel engines, which is convenient for customers to choose.
  • Built-in tilt cylinder makes the counterbalance forklift truck have much wider driving space.
  • Integrated operating system contributes to simple operation.
  • With unique overhead guard design,3.0-4.0T diesel forklift truck owns good visibility and is safer to drive.
  • Fully isolated driver compartment is beneficial to reduce vibration of truck body.
  • The driving cab of counterbalance forklift truck is designed based on ergonomics, which can reduce drivers' fatigue.
  • Our company has established over 30 domestic agencies and more than 10 foreign agencies, which greatly guarantees excellent service and technical support.
  • provides one year warranty for the main components of 3.0-4.0T diesel forklift trucks. During the warranty period, the replaced material expense and labor cost are both free.

BENE 3ton diesel forklift with isuzu engine 3t forklift truck with 4.5m triplex mastBENE 3ton diesel forklift with isuzu engine 3t forklift truck with 4.5m triplex mastBENE 3ton diesel forklift with isuzu engine 3t forklift truck with 4.5m triplex mast
