BENE 25ton to 28ton heavy duty forklift with cummins engine for sale

China BENE 25ton to 28ton heavy duty forklift with cummins engine for sale supplier
BENE 25ton to 28ton heavy duty forklift with cummins engine for sale supplier BENE 25ton to 28ton heavy duty forklift with cummins engine for sale supplier BENE 25ton to 28ton heavy duty forklift with cummins engine for sale supplier BENE 25ton to 28ton heavy duty forklift with cummins engine for sale supplier BENE 25ton to 28ton heavy duty forklift with cummins engine for sale supplier

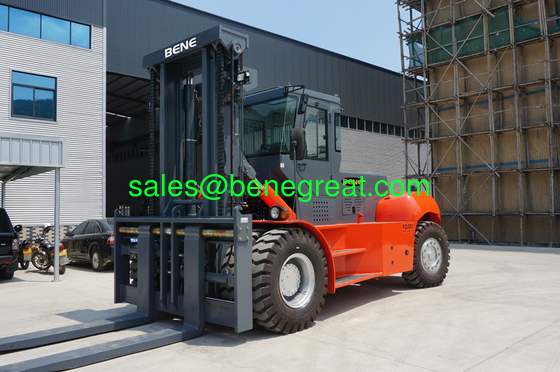

Large Image :  BENE 25ton to 28ton heavy duty forklift with cummins engine for sale

Product Details:

Place of Origin: China
Brand Name: BENE
Certification: ISO9001
Model Number: FD250

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: 120000USD---160000usd/unit
Packaging Details: nude
Delivery Time: 30days after payment
Payment Terms: L/C, T/T
Supply Ability: 99units per month
Contact Now
Detailed Product Description
Engine: Cummins Transmission: Hydraulic
Mast Height: 4000mm Load Center: 1200mm
Fork Length: 2400mm

25 ton to 28ton heavy duty forklift with cummins engine 25000kg container reach stacker for sale



1.Adopt CUMMINS diesel engine, which features sufficient power, large torque, strong overload capacity, reliable work, and low oil consumption

2.High strength solid steel gantry fork fixed with fork with regulator.

3.Heavy duty torque converter installed for smooth rotation of power within the internal combustion engine, to rotating-driven loads. Torque converter supersedes the mechanical clutch, effectively allowing the load to be configured from the power source.
4.Fitted with handy steer with maximum freedom, provides steering conveniences.
5.An ideal operation friendly in the engineering and industrial sectors.
6.Steering axle: adopt full-hydraulic steering gear with transverse cylinder, which helps ensure flexible steering and high reliability
7.The gearbox and torque converter are of reliable quality and stable performance.
8.The transmission mode is hydraulic transmission (flexible transmission), being stable and convenient to operate.
9.Brake system is famous brand product, with reliable brake performance.



Item Specification Unit
General 1 Model   FD250
2 Power Type/model   Diesel
3 Rated Capacity Kg 25000
4 Load Center mm 1200
Dimensions 5 Lift Height mm 4000
6 Fork Size(LxWxT) mm 2400×280×100
7 Fork Spread(outside)(Min./Max) mm 970/2640
8 Mast Tilt Angle(F/R) deg 6°/12°
9 Fork Overhang mm 970
10   Length without forks mm 6550
11 Overall Width mm 3060
12 Mast Lowered Height mm 3970
13 Overhead Guard Height mm 3550
14 Outer turning Radius   mm 6200
Performance 15 Speed(Unload/Load) Travel km/h 30/26
16 Lifting mm/s 300
17 Max.gradeability(Load) % 20
18 Max.drawbar pull(Load) KN 180
19 service Weight kg 32000
Wheels&Tires 20 Tire Front   4×14.00-24-24PR
21 Rear   2×14.00-24-20PR
22 Tread Front mm 2200
23 Rear mm 2350
24 Wheelbase mm 4250
25 Ground Clearance(Under mast) mm 360
Power & Transmission 26 Battery Voltage/Capacity(5HR) VA/h 2X12/120
27 Engine Model   WP10G220
28 Manufacture   WEICHAI
29 Rated Output Kw 162
30 Rated Torque N.m 786
31 No.Of Cyinder   6
32 Bore*stroke mm 114/135
33 Displacement L 8.3
34 Transmission Type   Fluid Torque Converter
35 StageFWD/RVS   2/1
  36 Operating Pressute Mpa 19



BENE 25ton to 28ton heavy duty forklift with cummins engine for saleBENE 25ton to 28ton heavy duty forklift with cummins engine for sale
