Price: | 60000USD--70000USD/unit | Engine: | Cummins/weichai |
---|---|---|---|
Transmission: | Hydraulic | Mast Height: | 3300mm |
Load Center: | 800mm |

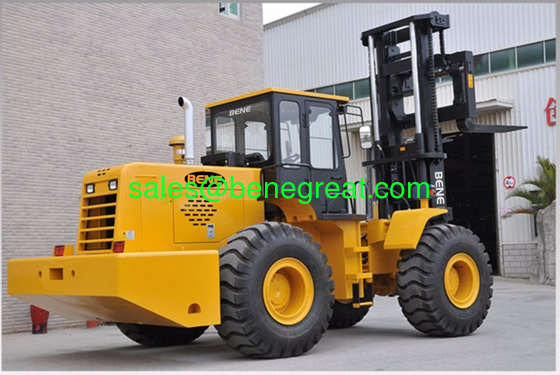

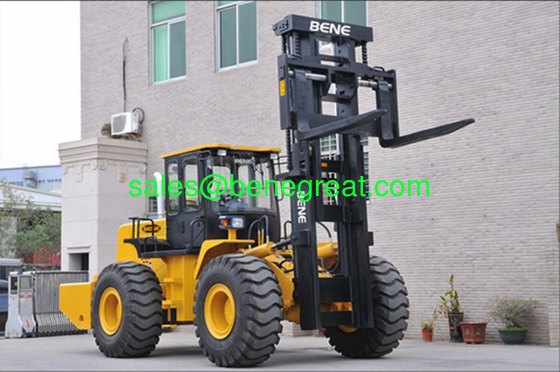

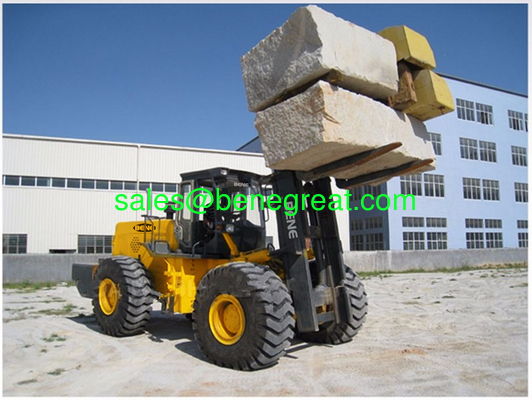

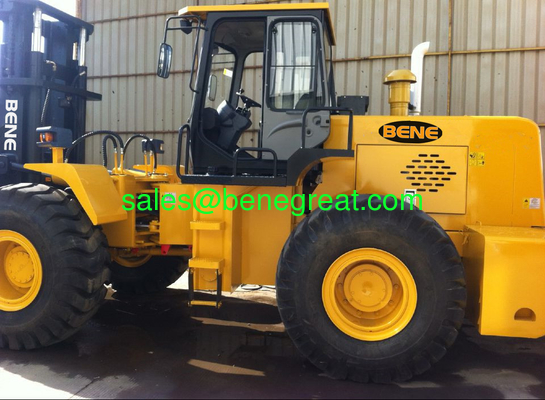

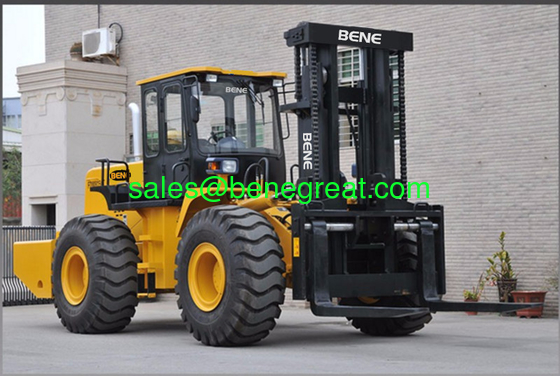

20ton all terrain forklift 20 ton 4x4 rough terrain forklift truck
STRICT ENVIROUMENT PROTECTION DESIGN
We applied a lot of strict environment friendly designs on our 15ton all terrain forklifts products. All these measures efficiently protect the user and improve the environment.
RELIABLE SPECIAD DESIGNED INSTRUMENT
Solid State Digital instrument with built-in intellectual chip, what makes it sensitive, accurate, reliab, low power consumption and long-life. It also works in wide temperature range(-40℃~+80℃) and with high interference resistant capability.
POWERFUL ENGINE AND TRANSIMISSION SYSTEM
Power and transmission system is composed of excellent components by using advanced manufacturing technology and machine and high quality engine. This combination made the truck powerful reliable.
Speciflcation | ||||||
---|---|---|---|---|---|---|
| Manufa cture | FBENE | ||||
Manufacture | BER200T | |||||
Power type | Diesel | |||||
Rated loading capacity | Kg | 20000 | ||||
Load center | mm | 800 | ||||
| Lift height | mm | 3000 | |||
Free lift height | mm | 195 | ||||
Fork size | mm | 1600×180×100 | ||||
Fork distance | Min./Max. | mm | 400/1480 | |||
Mast tilt anglc | Front/After | deg | 8/12 | |||
Front overhang | mm | 950 | ||||
| Overall length | mm | 75000 | |||
Overallwidth | mm | 2600 | ||||
Mast lowered height | mm | 2980 | ||||
Mast extended height | mm | 4380 | ||||
Overhead guard height | mm | 32000 | ||||
Turning radius | mm | 5500 | ||||
Min.right angle aisle width | mm | 3500 | ||||
| | Traveling Speed | km/h | 25/24 | ||
Lifting spead | mm/sec | 320/270 | ||||
Max.grade abnlity | % | 25 | ||||
Max. Pull force(full load) | KN | 95 | ||||
Self weight | kg | 23800 | ||||
| Tread | Front | 26.5-25 | |||
Rear | 26.5-25 | |||||
Treadwidth | Front | mm | 1500 | |||
Rear | mm | 1550 | ||||
Wheelbase | mm | 3900 | ||||
Min.Ground clearance (No load/Full load) | Mast | mm | 230/220 | |||
Frame | mm | 245/240 | ||||
| Battery | V/AH | 24/100×2 | |||
| Manufacture | WD10G220E11 | ||||
Manufacture | WEICHAI | |||||
Rated power | Kw/rpm | 162/2300 | ||||
Rated torque | N.m/rpm | 1460/2400 | ||||
NO.of cylinder | 6 | |||||
Bore×Stroke | mm | 126×130 | ||||
Displace ment | L | 9.726 | ||||
Fule tank capacity | L | 200 | ||||
| Type | L | Hydraulic | |||
Shift Front/rear | 2/1 |
