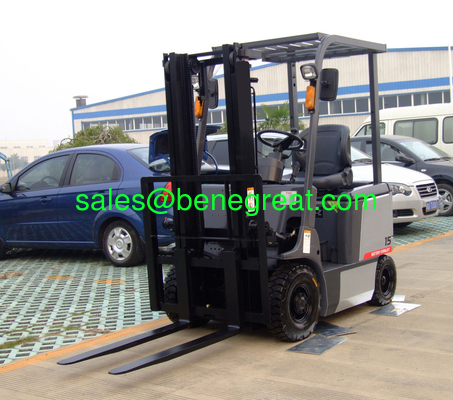

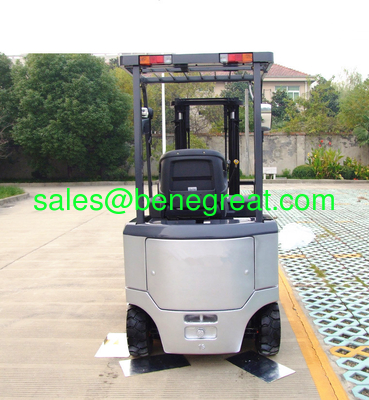

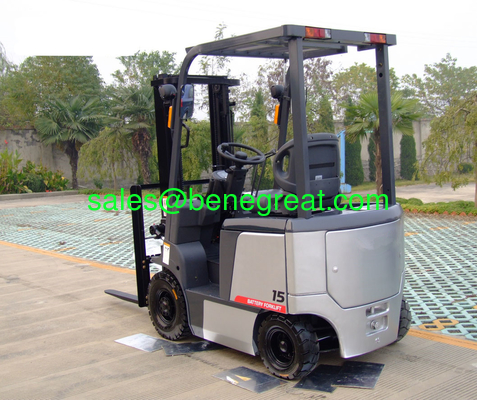

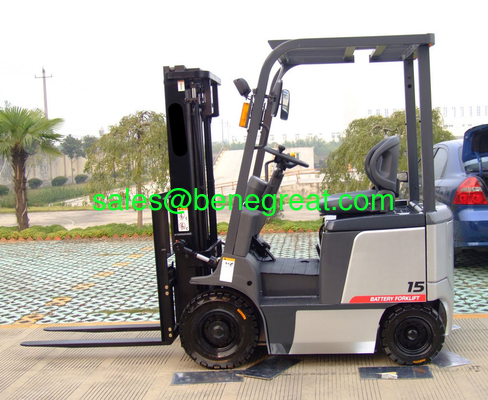

1.5t eclectic forklift truck 1.5 ton battery forklift 1.5t lift truck price

1.5t eclectic forklift truck 1.5 ton battery forklift 1.5t lift truck price

Description
BENE can produce 1.5-4T electric forklift trucks for customers. The electric counterbalance forklift truck adopts storage battery to provide power. It is suitable for those areas that needs high requirements of environmental protection, such as indoor place and warehouse. This electric forklift is non-polluting and energy-saving. It adopts drive system with independent design, low noise and high efficiency. We also select imported motor and electric control units to ensure high reliability of hydraulic parts. Our company can also customize various electric forklift trucks according to customers' requirements. Lemon yellow or silver electric counterbalance forklift truck is optional for customers.

Applications
Electric forklift trucks are ideal material handing equipment for either indoor or outdoor applications. They can be widely used in workshops, warehouses and supermarkets for goods transferring. They are also ideal for using in food, clothing, knitwear and other woven products.

• Advantages
• Our electric counterbalance forklift trucks have passed ISO9000 certification and CE certification.
• BENE owns a technical development team who pursuits the best cost-effective products and provides high quality and timely service.

• Performance of 1.5-4T Electric Forklift Truck
• BENE electric counterbalance forklift truck has a compact body structure. It is easy and convenient to operate.
• The width of new 1.5 ton forklift is narrower than standard cargo pallets (1100 mm). It can move vehicles freely in a very narrow working space. The customers' workshop space can be fully utilized.
• Electric forklift truck owns compact body width (1070mm) and minimum turning radius (1780mm).
• Our electric counterbalance forklift trucks are equipped with getting-on pedals and suspending seat, which can reduce operators' fatigue and make them feel comfortable.
• We provide three operation modes. They can be converted to the most appropriate operation mode.
• BENE electric forklift truck enjoys the advantage of low maintenance cost.

• Specifications	Manufacturer
  	Model			FB15
  	Load capacity		kg	1500
  	Load center		mm	500
  	Power unit			Battery
  	Operator type			Driver/seat
  	Tire type			Pneumatic
  	Wheel(x=driving)	Front/rear		2X/2
  Dimensions	Max. lifting height		mm	3000
  	Free lift		mm	155
  	Fork size	L*W*T	mm	920*100*35
  	Tilt range	Mast forward/backward	deg	6/12
  	Overall length(without fork)		mm	1955
  	Total width		mm	1070
  	Mast height (fork lowering)		mm	1995
  	Overall height fork raised	With backrest	mm	4030
  	Height to head guard		mm	2100
  	Turning raduis(outside)		mm	1780
  	Load distance		mm	375
  	Min. right angle stacking aisle	not add load length&clearence	mm	2155
  Performance	Speed	Max Travelling full load	km/h	14
  		Max Travelling No load	km/h	16
  		Lifting full load	mm/s	350
  		Lifting no load	mm/s	530
  	Gradeability	full load	%	15
  Weight	Truck weight		kg	2690
  	Weight distribution	Full load front/rear	kg	3635/555
  		No load front/rear	kg	1110/1580
  Chassis&Wheels	Tires	Number	front/rear	2/2
  		Model	front axle	6.00-9-10-10PR
  			rear axle	16*6-8-10PR
  	Wheelbase		mm	1250
  	Tread	Front/rear	mm	910/900
  	Ground clearence	At lowest point(mast)	mm	105
  		Frame	mm	95
  	Brake	Service brake		Hydraulic-foot pedal
  		Parking brak		Mechanical-hand lever
  Drive Line	Battery	Voltage/capacity	V-AH/5hr	48V-400
  		Weight with box (standard)	kg	735
  	Electric motor	AC Driving motor	kw	8
  		DC Hydraulic driving motor	kw	8.2
  		AC Hydraulic driving motor	kw	8
  	Control type		Driving AC , lifting DC Driving AC , lifting AC(as option )
  	Operating pressure		kg/cm²	145

•
