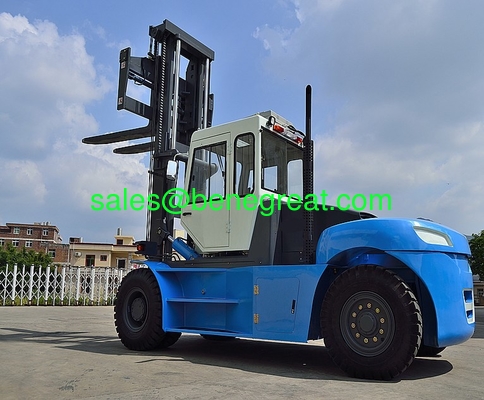

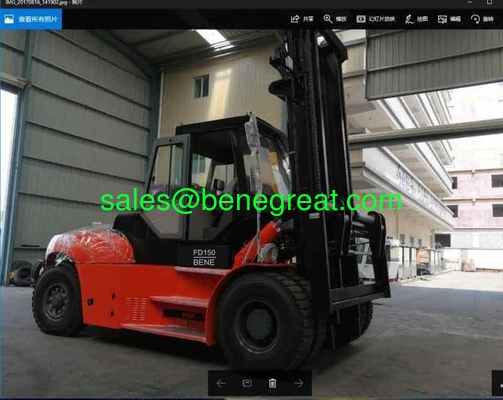

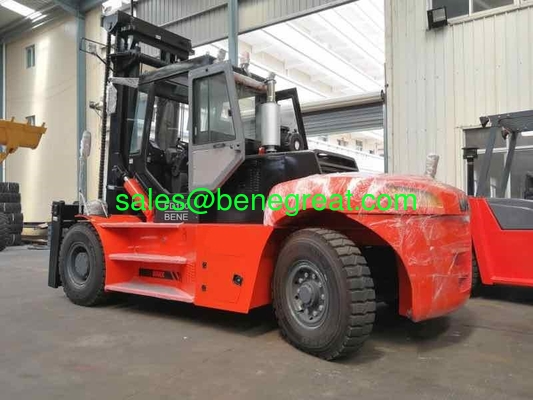

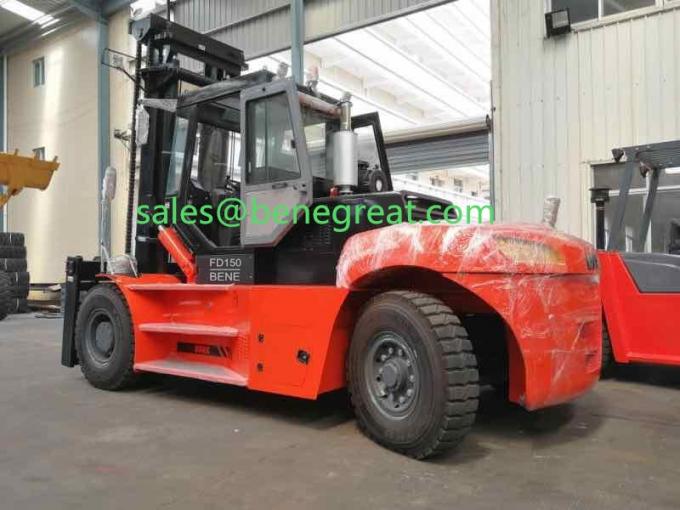

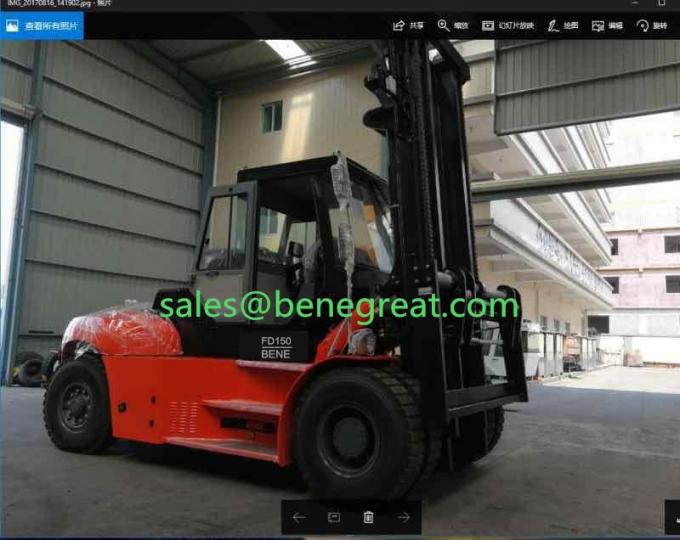

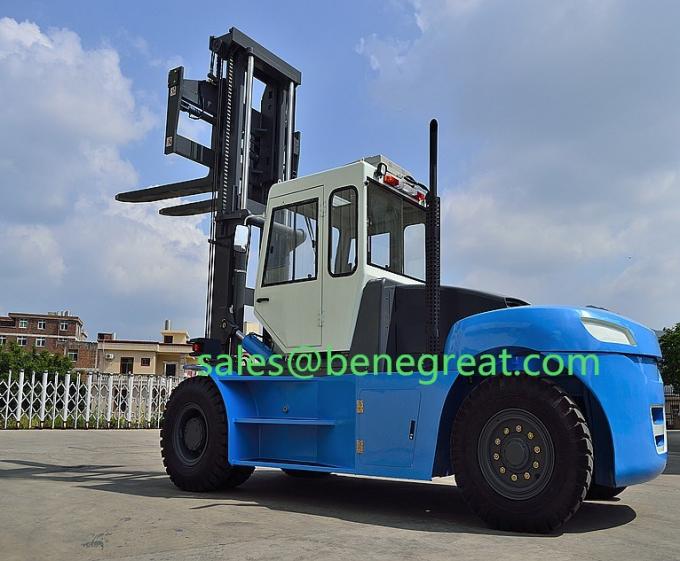

BENE 15ton 16T heavy diesel forklift truck 16 tonne big forklift for material handing
Engine: 15 ton diesel forklift truck use Yuchai Engine, low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection
Steering axle: 15 ton diesel forklift truck adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable
Transmission & torque convert: 15 ton diesel forklift truck matched with imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation
Hydraulic system: 15 ton diesel forklift truck has double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Pipeline: high pressure oil line impact resistance, wear resistance and long service life
Tyre: sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable
Fork: use famous brand Fork, with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity
Mast: 3.5-6m box-type internal-external mast, special all-round roller bearings, increase lifting performance
| Item |
Specification |
Unit |
|
| General |
1 |
Model |
|
FD150 |
| 2 |
Power Type/model |
|
Diesel |
| 3 |
Rated Capacity |
Kg |
15000 |
| 4 |
Load Center |
mm |
900 |
| Dimensions |
5 |
Lift Height |
mm |
3500 |
| 6 |
Fork Size(LxWxT) |
mm |
2000×220×90 |
| 7 |
Fork Spread(outside)(Min./Max) |
mm |
540/2260 |
| 8 |
Mast Tilt Angle(F/R) |
deg |
6°/12° |
| 9 |
Fork Overhang |
mm |
800 |
| 10 |
|
Length without forks |
mm |
5400 |
| 11 |
Overall Width |
mm |
2550 |
| 12 |
Mast Lowered Height |
mm |
3460 |
| 13 |
Overhead Guard Height |
mm |
3300 |
| 14 |
Outer turning Radius |
|
mm |
5050 |
| Performance |
15 |
Speed(Unload/Load) |
Travel |
km/h |
30/26 |
| 16 |
Lifting |
mm/s |
300 |
| 17 |
Max.gradeability(Load) |
% |
20 |
| 18 |
Max.drawbar pull(Load) |
KN |
120 |
| 19 |
service Weight |
kg |
21000 |
| Wheels&Tires |
20 |
Tire |
Front |
|
4×12.00-24-18PR |
| 21 |
Rear |
|
2×12.00-20-18PR |
| 22 |
Tread |
Front |
mm |
1850 |
| 23 |
Rear |
mm |
2130 |
| 24 |
Wheelbase |
mm |
3600 |
| 25 |
Ground Clearance(Under mast) |
mm |
260 |
| Power & Transmission |
26 |
Battery |
Voltage/Capacity(5HR) |
VA/h |
2X12/120 |
| 27 |
Engine |
Model |
|
YC6J175-T302 |
| 28 |
Manufacture |
|
YUCHAI |
| 29 |
Rated Output |
Kw |
129 |
| 30 |
Rated Torque |
N.m |
710 |
| 31 |
No.Of Cyinder |
|
6 |
| 32 |
Bore*stroke |
mm |
102/120 |
| 33 |
Displacement |
L |
6.5 |
| 34 |
Transmission |
Type |
|
Fluid Torque Converter |
| 35 |
StageFWD/RVS |
|
2/1 |
| |
36 |
Operating Pressute |
Mpa |
19 |
