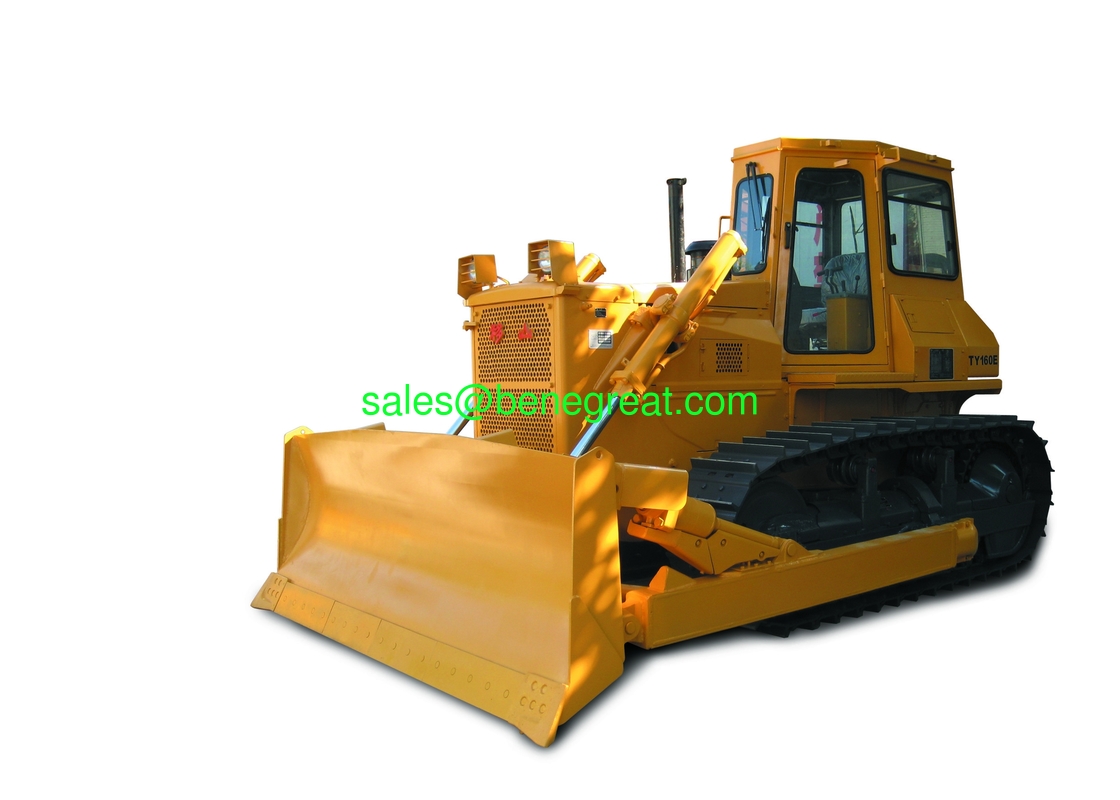

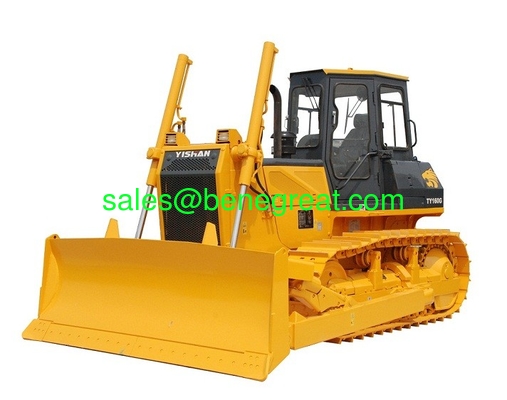

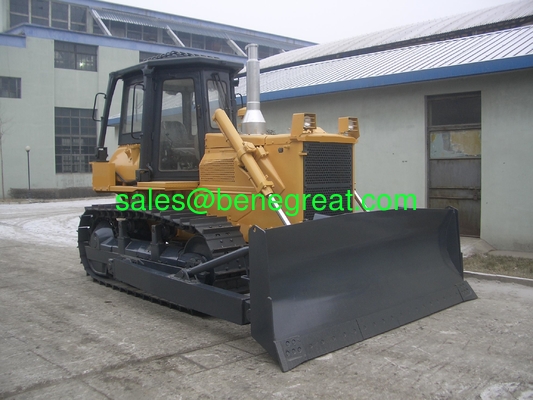

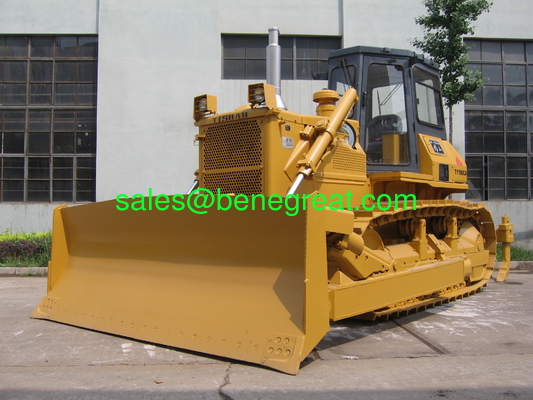

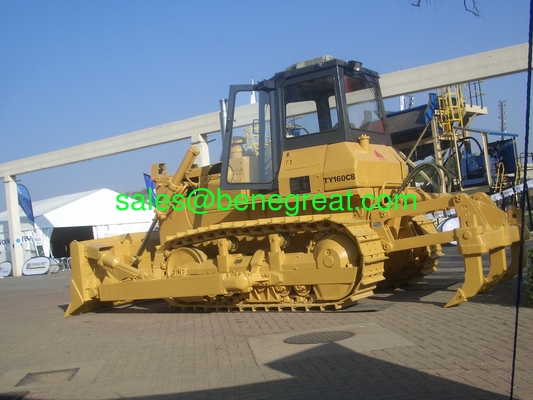

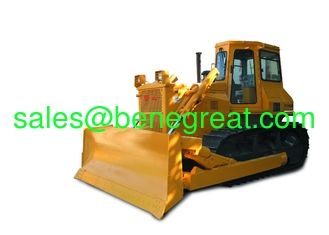

Escavadora de lagartas SD160 160hp com cabine ROPS with low price

China Escavadora de lagartas SD160 160hp com cabine ROPS with low price supplier
Escavadora de lagartas SD160 160hp com cabine ROPS with low price supplier Escavadora de lagartas SD160 160hp com cabine ROPS with low price supplier Escavadora de lagartas SD160 160hp com cabine ROPS with low price supplier Escavadora de lagartas SD160 160hp com cabine ROPS with low price supplier Escavadora de lagartas SD160 160hp com cabine ROPS with low price supplier Escavadora de lagartas SD160 160hp com cabine ROPS with low price supplier Escavadora de lagartas SD160 160hp com cabine ROPS with low price supplier

Large Image :  Escavadora de lagartas SD160 160hp com cabine ROPS with low price

Product Details:

Place of Origin: China
Brand Name: BENE
Certification: ISO9001
Model Number: TY160

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: 50000USD/unit
Packaging Details: nude packing
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 999 units per year
Contact Now
Detailed Product Description
Engine: Cummins Color: Yellow
Delivery: 30days Warranty: One Year Or 2000 Working Hours

Escavadora de lagartas SD160 160hp com cabine ROPS

●AWARDED THE ISO9001:2000 SYSTEM CERTIFICATE
●ENGINE MODEL: CUMMINS NT855-C280S10/SHANGCHAIi SC11CB184G2B1
/WEICHAI WD10G178E25
●FLYWHEEL HORSEPOWER: 160 HP (131 kW)/1850RPM
●OPERATING WEIGHT(STRAIGHT-TILT DOZER): 17400kg
●INTRODUCED KOMATSU D65A-8 BULLDOZER TECHNOLOGY, FEATURING HIGH PERFORMANCE CAPACITY, EFFICIENCY, SAFE AND RELIABLE IN OPERATION.
●WIDELY USED IN BUILDING INFRASTRUCTURE AND INDUSTRY INCLUDING LARGE MINING AREA , PORT, POWER PLANT,ROAD BUILDING ETC.
●OPTIONAL ATTACHMENTS: STRAIGHT-TILT BLADE, ANGLE BALDE, U-BLADE, ROPS CAB,CANOPY ,3-SHANK RIPPER,AIR CONDITIONER,510mm TRACK SHOES,610mm TRACK SHOES.



SPECIFICATION WORK EQUIPMENT
Specification/Blade type Straight-tilt Angle U-Blade Specification/Blade type Straight-tilt Angle U-Blade
Operating Weight (kg) 17400 17700 17900 Blade Capacity (m3) 4.5 4.3 8.6
Operating Weight (kg) 400 400 400 Blade Width X Height(mm) 3416×1145/3970×1037/4064×1386
Min.Turning Radius (m) 3.2 3.2 3.2 Max.Lift (mm) 1110 1095 1095
Ground Pressure (MPa) 0.069 0.070 0.071 Max.Depth (mm) 530 545 545
Track Gauge (mm) 1880 1880 1880 Max.tilt Adjustment (mm) ≥860 ≥400 ≥400
Max. Pulling Force (KN) 142 142 142 Pitch Adjustment ( ° ) 55 55 55
Grade Ability (°) 30 30 30 Capability(m3/H)(Theoretical value 40m) 247 / 247 / 260
TRAVEL SPEED Weight Of Blade (kg) 2350 2450 2560
1st 2nd 3rd COOLANT AND LUBRICANT CAPACITY
Forward (km) 0~3.8 0~6.6 0~10.6 Fuel Tank Capacity (L).....................................................................320
Reverse (km) 0~4.9 0~8.5 0~13.6 Hydraulic Tank Capacity (L).............................................................108
ENGINE Engine oil Capacity (L).......................................................................45
Model & Type Cummins NT855-C280S10/ Shangchai SC11CB184G2B1/ Weichai WD10G178E25, 6-cylinder, in-line, vertical. water-cooled, 4-stroke-cycle, turbo-charged, over valve directs injection Torque Converter ,Transmission, Bevel Gear., Steering Clutch Capacity (L)...................................................................................122
Rated Revolution (rpm) ................................................................ 1850 Final Drive Capacity (L) ..........................................33(each side)

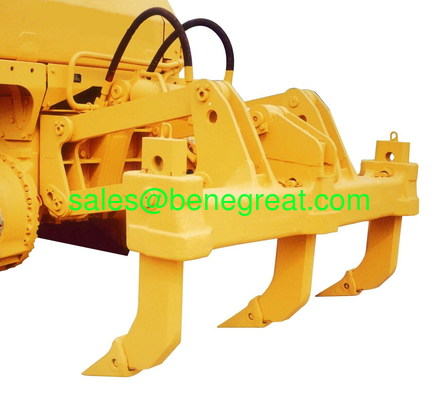

Flywheel Horsepower (HP) ........................................................... 160 RIPPER(OPTIONAL)
Cummins:6-139.7X 152.4 3-Shank Ripper:
Cylinder Number-BoreX Stroke (mm) Shangchai:6-120.6X 152.4 Max.Digging Depth (mm) ............................................................... 572
Weichai:6-126X 130 Max.Lift (mm) .................................................................................. 702
Piston Displacement (L) ..... Cummins:14 Shangchai:10.5 Weichai:9.73 Shank Of Distance (mm) ............................................................950
Min. Fuel Consumption (g/kW.h) Cummins:212 Shangchai:223
Weichai:223
Weight (kg) ................................................................................... 1700
Max.Torque (Nm/rpm) Cummins:877/1250 Shangchai:830/1100
Weichai: 830/1100
OVERALL DIMENSIONS
Starting Method........................................Starting motor 24V 7.5kW Straight-tilt Blade Dimensions
POWER TRANSMISSION SYSTEM tY160
Note: Materials and specifications are subject to change without notice.
Torque Converter ............................ 3-element,1-stage,1-phase
Transmission Planetary gearing, hand-manipulated, hydraulic shift, forced lubrication,3 forward and 3 reverse speeds
Bevel Gear.........Spiral bevel gear, splash lubrication, single-stage speed reduction
Steering Clutch................................. Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control
Steering Brake ...... Wet, band type, pedal hydraulic booster, with parking brakes
Final Drive .............Double reduction of spur gear, splash lubrication
HYDRAULIC SYSTEM
Pump Type............................................ Gear pump 07441-67503
Working Pressure (MPa).................................................................13.4
System Discharge (L/min)…..........250(at revolution of 1850rpm)
Working Cylinder type...........................Double-acting piston type
Working Cylinder Lift Number-BoreXRodXStroke (mm).............. 2-110X65X1026
Working Cylinder Tilt BoreXRodXStroke (mm).........160X70X140
UNDERCARRIAGE SYSTEM
Type ................ Swing type of sprayed beam, suspended structure of equalizer bar
Carrier Rollers.................................................................. 2(each side)
Track Rollers...... 6/each side (4-single flange, 2-double flange)
Track Type................................ Sealed, assembled single- grouser
Number Of Track Shoes.............. 37(each side)
Width Of Track Shoes (mm) ....................................................... 510
Pitch (mm) .................................................................................... 203.2
Length Of Track 0n Ground (mm)...............................................2430
