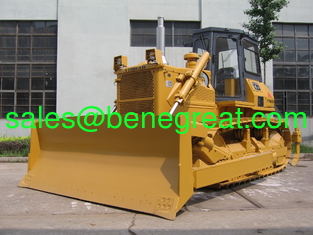

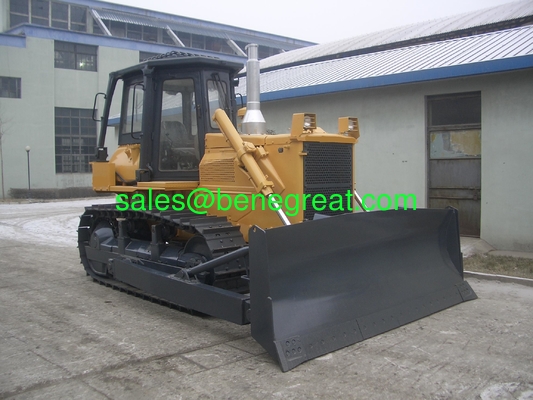

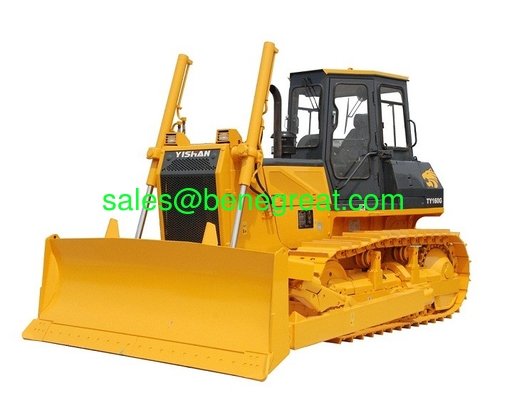

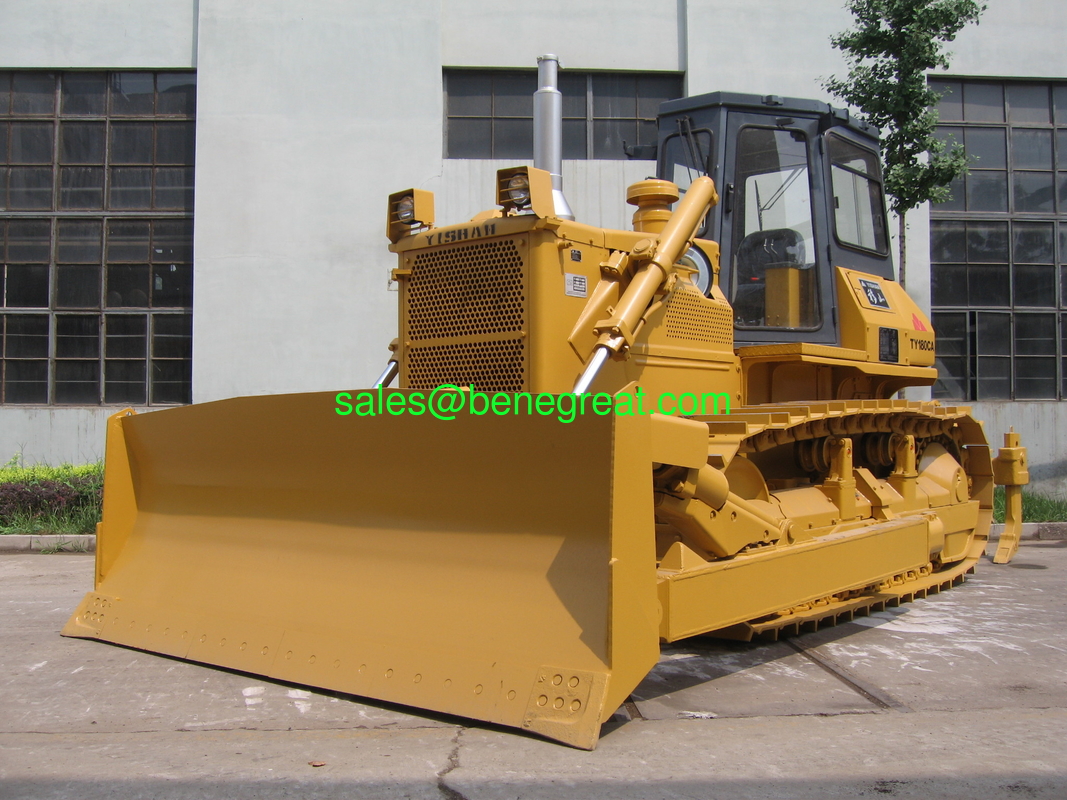

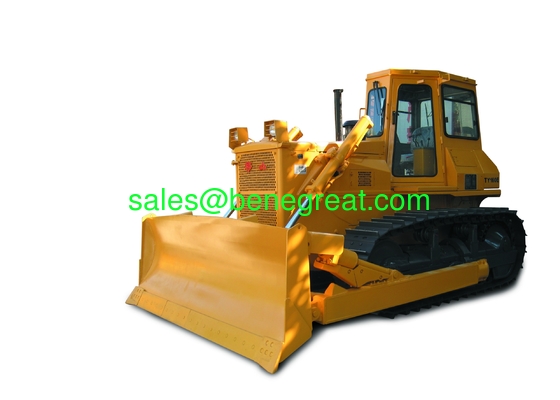

| SPECIFICATION |
WORK EQUIPMENT |
| Specification/Blade type Straight-tilt Angle U-Blade |
Specification/Blade type Straight-tilt Angle U-Blade |
| Operating Weight (kg) 17400 17700 17900 |
Blade Capacity (m3) 4.5 4.3 8.6 |
| Operating Weight (kg) 400 400 400 |
Blade Width X Height(mm) 3416×1145/3970×1037/4064×1386 |
| Min.Turning Radius (m) 3.2 3.2 3.2 |
Max.Lift (mm) 1110 1095 1095 |
| Ground Pressure (MPa) 0.069 0.070 0.071 |
Max.Depth (mm) 530 545 545 |
| Track Gauge (mm) 1880 1880 1880 |
Max.tilt Adjustment (mm) ≥860 ≥400 ≥400 |
| Max. Pulling Force (KN) 142 142 142 |
Pitch Adjustment ( ° ) 55 55 55 |
| Grade Ability (°) 30 30 30 |
Capability(m3/H)(Theoretical value 40m) 247 / 247 / 260 |
| TRAVEL SPEED |
Weight Of Blade (kg) 2350 2450 2560 |
| 1st 2nd 3rd |
COOLANT AND LUBRICANT CAPACITY |
| Forward (km) 0～3.8 0～6.6 0～10.6 |
Fuel Tank Capacity (L).....................................................................320 |
| Reverse (km) 0～4.9 0～8.5 0～13.6 |
Hydraulic Tank Capacity (L).............................................................108 |
| ENGINE |
Engine oil Capacity (L).......................................................................45 |
| Model & Type Cummins NT855-C280S10/ Shangchai SC11CB184G2B1/ Weichai WD10G178E25, 6-cylinder, in-line, vertical. water-cooled, 4-stroke-cycle, turbo-charged, over valve directs injection |
Torque Converter ,Transmission, Bevel Gear., Steering Clutch Capacity (L)...................................................................................122 |
| Rated Revolution (rpm) ................................................................ 1850 |
Final Drive Capacity (L) ..........................................33(each side) |
| Flywheel Horsepower (HP) ........................................................... 160 |

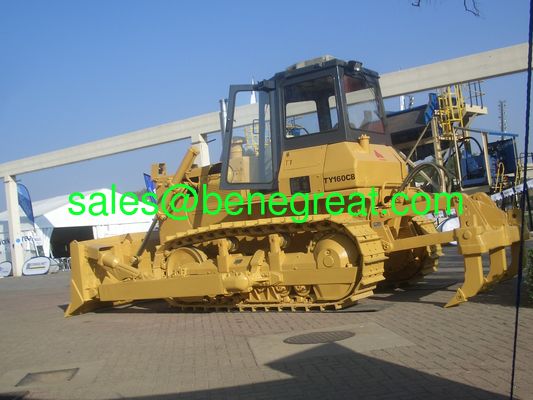

RIPPER(OPTIONAL) |
| Cummins:6-139.7X 152.4 |
3-Shank Ripper: |
| Cylinder Number-BoreX Stroke (mm) Shangchai:6-120.6X 152.4 |
Max.Digging Depth (mm) ............................................................... 572 |
| Weichai:6-126X 130 |
Max.Lift (mm) .................................................................................. 702 |
| Piston Displacement (L) ..... Cummins:14 Shangchai:10.5 Weichai:9.73 |
Shank Of Distance (mm) ............................................................950 |
Min. Fuel Consumption (g/kW.h) Cummins:212 Shangchai:223
Weichai:223 |
Weight (kg) ................................................................................... 1700 |
Max.Torque (Nm/rpm) Cummins:877/1250 Shangchai:830/1100
Weichai: 830/1100 |
OVERALL DIMENSIONS |
| Starting Method........................................Starting motor 24V 7.5kW |
Straight-tilt Blade Dimensions |
| POWER TRANSMISSION SYSTEM |
| Note: Materials and specifications are subject to change without notice. |
|
| Torque Converter ............................ 3-element,1-stage,1-phase |
| Transmission Planetary gearing, hand-manipulated, hydraulic shift, forced lubrication,3 forward and 3 reverse speeds |
| Bevel Gear.........Spiral bevel gear, splash lubrication, single-stage speed reduction |
| Steering Clutch................................. Wet, multi-disc, spring loaded, hydraulically separated, hydraulic control |
| Steering Brake ...... Wet, band type, pedal hydraulic booster, with parking brakes |
| Final Drive .............Double reduction of spur gear, splash lubrication |
| HYDRAULIC SYSTEM |
| Pump Type............................................ Gear pump 07441-67503 |
| Working Pressure (MPa).................................................................13.4 |
| System Discharge (L/min)…..........250(at revolution of 1850rpm) |
| Working Cylinder type...........................Double-acting piston type |
| Working Cylinder Lift Number-BoreXRodXStroke (mm).............. 2-110X65X1026 |
| Working Cylinder Tilt BoreXRodXStroke (mm).........160X70X140 |
| UNDERCARRIAGE SYSTEM |
| Type ................ Swing type of sprayed beam, suspended structure of equalizer bar |
| Carrier Rollers.................................................................. 2(each side) |
| Track Rollers...... 6/each side (4-single flange, 2-double flange) |
| Track Type................................ Sealed, assembled single- grouser |
| Number Of Track Shoes.............. 37(each side) |
| Width Of Track Shoes (mm) ....................................................... 510 |
| Pitch (mm) .................................................................................... 203.2 |
| Length Of Track 0n Ground (mm)...............................................2430 |
