brand new 10 ton forklift truck VS TCM 10 ton diesel forklift Toyota 10 ton forklift truck

China brand new 10 ton forklift truck VS TCM 10 ton diesel forklift Toyota 10 ton forklift truck supplier
brand new 10 ton forklift truck VS TCM 10 ton diesel forklift Toyota 10 ton forklift truck supplier brand new 10 ton forklift truck VS TCM 10 ton diesel forklift Toyota 10 ton forklift truck supplier brand new 10 ton forklift truck VS TCM 10 ton diesel forklift Toyota 10 ton forklift truck supplier brand new 10 ton forklift truck VS TCM 10 ton diesel forklift Toyota 10 ton forklift truck supplier

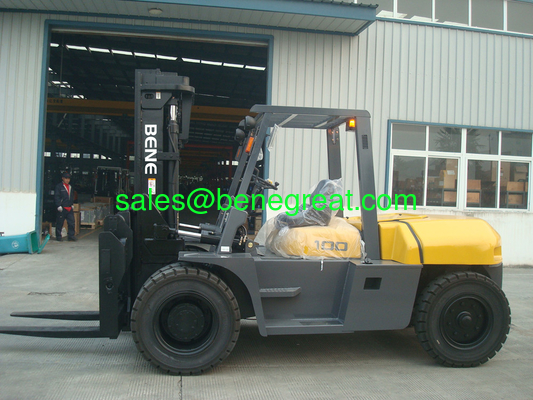

Large Image :  brand new 10 ton forklift truck VS TCM 10 ton diesel forklift Toyota 10 ton forklift truck

Product Details:

Place of Origin: CHINA
Brand Name: BENE
Certification: CE
Model Number: FD100T

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 25000USD--35000USD per unit
Packaging Details: nude
Delivery Time: in 15days
Payment Terms: L/C, T/T
Supply Ability: 999units per month
Contact Now
Detailed Product Description
Engine: ISUZU 6BG1 Transmission: Hydraulic
Mast Height: 3000mm Certificate: CE
Color: Yellow Capacity: 10000kg

10ton forklift truck VS TCM 10 ton diesel forklift Toyota 10 ton forklift price



10 ton diesel forklift is very famous for its safety, comfort, environmental protection, good stability and flexible utility. This diesel forklift truck is often used to lift and transport cargoes in the outdoors.



Compared with gasoline engine, diesel engine enjoys the advantages of better power performance and low fuel charge. The engine is not easy to flame out even at low speed. It owns strong overload capacity and long-term working capacity. The 10 ton diesel forklift is equipped with 6.494L ISUZU engines, power shift T/M transmissions as well as advanced hydraulic and cooling system.

Parameters

SPECIFICATION Item FD50T FD60T FD70T FD80T FD100T
Load capacity kg 5000 6000 7000 8000 10000
Load center mm 600 600 600 600 600
DIMENSIONS Max. lifting height mm 3000 3000 3000 3000 3000
Free lift mm 205 205 210 205 205
Fork size mm 1220*150*60 1220*150*60 1220*150*65 1220*170*75 1220*175*75
Overall length(without fork) mm 3455 3530 3590 3740 4255
Total width mm 1995 1995 1995 1995 2245
Mast height (fork lowering) mm 2500 2500 2500 2625 2850
Overall height fork raised mm 4420 4420 4420 4545 4330
Height to head guard mm 2450 2450 2450 2450 2560
Truck weight kg 8050 8750 9450 10450 12450
TIRES front/rear   4/2 4/2 4/2 4/2 4/2
front axle   8.25x15-14PR 8.25x15-14PR 8.25x15-14PR 8.25x15-14PR 9.00x20-14PR
rear axle   8.25x15-14PR 8.25x15-14PR 8.25x15-14PR 8.25x15-14PR 9.00x20-14PR
ENGINE Model   ISUZU 6BG1 Chaochai 6102 Mitsubishi S6S-T Chaochai 6102 ISUZU 6BG1
Rated power JIS PS 112/2000 110/2500 63.9/2300 110/2500 112/2000
Rated torque JIS kg-m 42.5/1500 36/1650 28.5/1700 36/1650 42.5/1500
Number of cylinders   6 6 4.9 6 6
Dislacement L 6.494 5.785 6 5.785 6.494

Optional Engines

5.0T-7.0T: Chinese 6102, Chinese 6110,Isuzu 6BG1,Mitsubishi S6S-T

8.0T-11.5T: Chinese 6110,Isuzu 6BG1

  • Competitive Advantages
  • Our company has an innovative team who pursuit the best performance. We also provide high-quality and timely service.
  • 5 ton diesel forklifts can match with different kinds of engines. This provides multiple choices for customers.
  • Designed with hydraulic system, this diesel forklift truck can effectively increase service life and productivity.
  • Built-in tilt cylinder makes the driving space much wider.
  • High-quality components guarantee good performance of our 5 ton diesel forklifts. The hydraulic components and key parts are acquired from world-renowned manufacturers.
  • Integrated control system makes this diesel forklift truck easier to manipulate.

Main Parts of 10 Ton Diesel Forklift

Engine It is the power unit of the forklift truck, which converts thermal energy into mechanical energy.
Transmission Gear It includes clutch, transmission, main transmission, differential mechanism, axle shaft, etc.
Operating Control It consists of steering mechanism and brake system.
Working Device It includes inside and outside door frame, fork mounting, pallet fork, lifting chain, roller, pulley and other parts. Its role is to lift or stack cargoes.
Hydraulic System It includes fuel tank, hydraulic pump, distributor, lifting hydraulic cylinder and tilt cylinder. It can realize lifting and tilting of cargoes.
Electric System It consists of power section and the electric part, such as storage battery, alternator, starter motor, ignition device, illumination device and loudspeaker.
  • Operation Attentions
  • Customers need to fully know the working environment, the maximum load and the maximum lifting height of the 10 ton diesel forklift and then choose appropriate models and configurations.
  • Drivers who have been trained and hold driving license can drive this diesel forklift truck.
  • Check each control and alarm device before driving this 10T forklift. If there is damage or defect, it must be operated after repair.
  • The pallet fork should insert below the cargoes and make cargoes distribute evenly on the fork. It is prohibited to use a single fork tip to pick the cargoes.
  • Stable starting, steering, driving, braking and stopping are quite necessary. When we drive the 10 ton diesel forklift on wet or slippery road, we need to slow down while steering.
  • When the FD100T diesel forklift truck loaded with material is driving, we should ensure that the cargoes are lowered and the door frame is inclined to the rear.
  • Customers need to pay attention to daily maintenance of this forklift truck.
  • brand new 10 ton forklift truck VS TCM 10 ton diesel forklift Toyota 10 ton forklift truckbrand new 10 ton forklift truck VS TCM 10 ton diesel forklift Toyota 10 ton forklift truckbrand new 10 ton forklift truck VS TCM 10 ton diesel forklift Toyota 10 ton forklift truckbrand new 10 ton forklift truck VS TCM 10 ton diesel forklift Toyota 10 ton forklift truck
