Product Details:
Payment & Shipping Terms:
|
Price: | 70000-90000USD | Engine: | Cummins |
---|---|---|---|
Transmission: | Hydraulic | Load Capacity: | 15000kgs |
Engine power
|
199KW/2200r/min
|
Overall dimension(LXWXH)
|
8350X3210X3690mm
|
Operating weight
|
25000KGS
|
Max. climbing gradient
|
28°
|
Rated loading capacity
|
15000KGS
|
Turning radius
|
6650mm
|
Log diameter
|
2m
|
Max. breakout force
|
145kN
|
Log width
|
3000mm
|
Max. torque
|
745.3N.m
|
Wheelbase
|
3350mm
|
Lifting time
|
≤ 6.8s
|
Treed width
|
2480mm
|
Hydraulic cylinder time
|
≤ 12.55s
|
Dumping height
|
3250mm
|
Specification of tire
|
26.5-25
|
Dumping reach
|
1500mm
|
Travel speed(Forward)
|
38km/h
|
Turning angle
|
35°±1°
|
Travel speed(Reverse)
|
16km/h
|
Description:

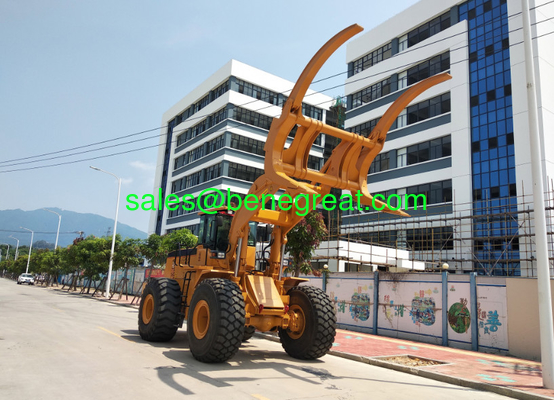

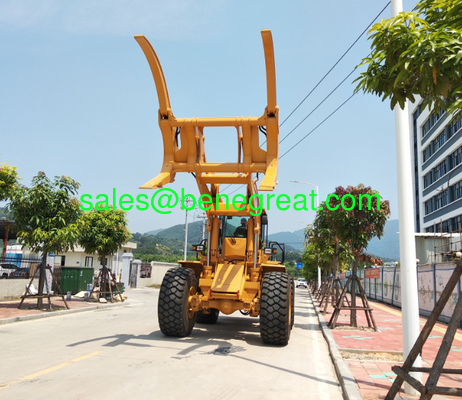

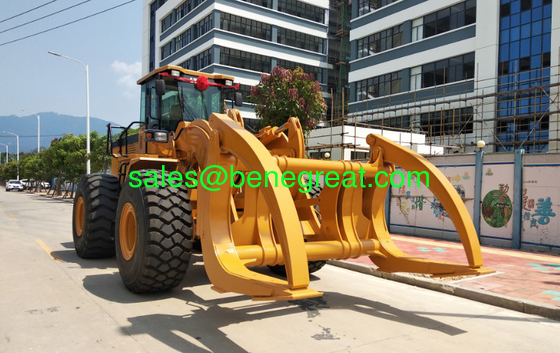

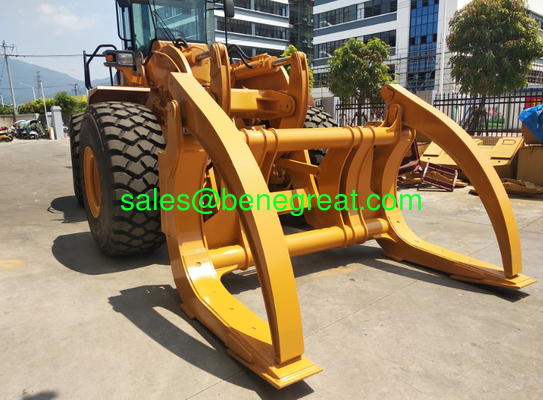

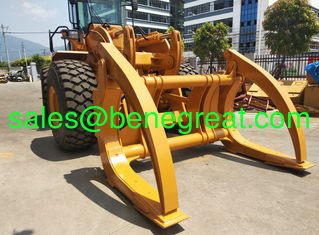

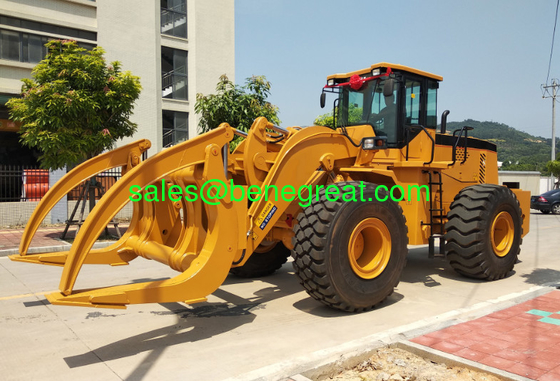

This grapple can be used to grab log, it can do single grab or a crib fetching with convenient and high work efficiency.
Features:
1.Loading capacity from 3T to 25T capacity.
2.Widely use in timber mill, sea port transportation etc.
3.Different sizes for different wheel loader.
Application Field:
Loader log grapples are widely applicable to lumber yard, sea port, transport etc.
A9: Yes, of course, we can provide it according to your requirements.
