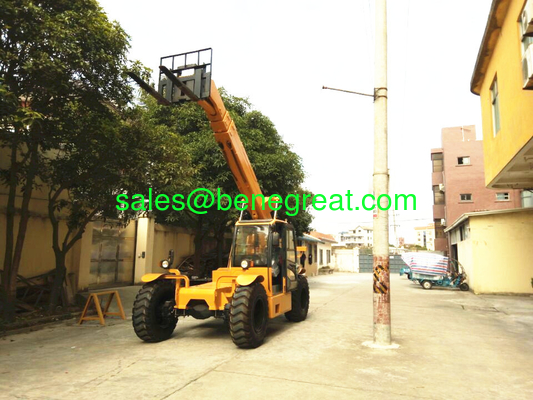

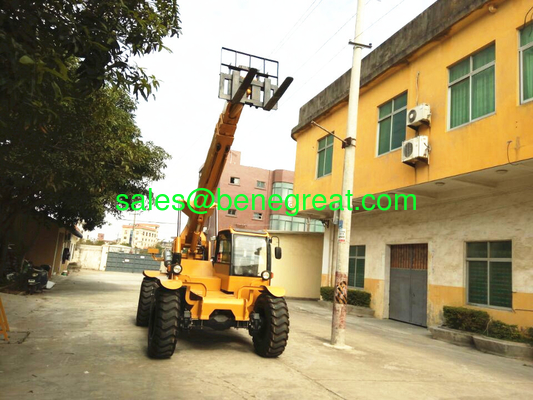

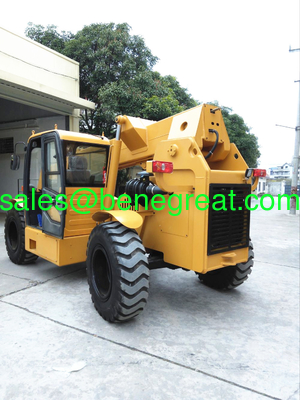

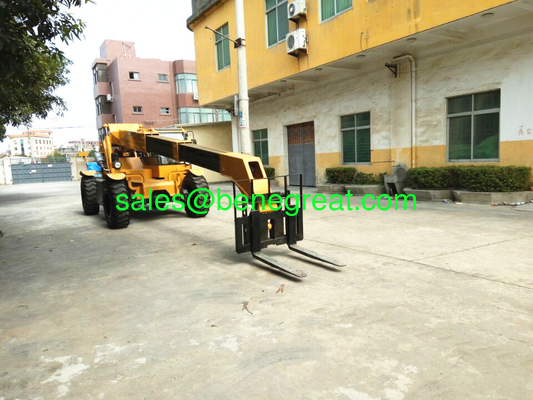

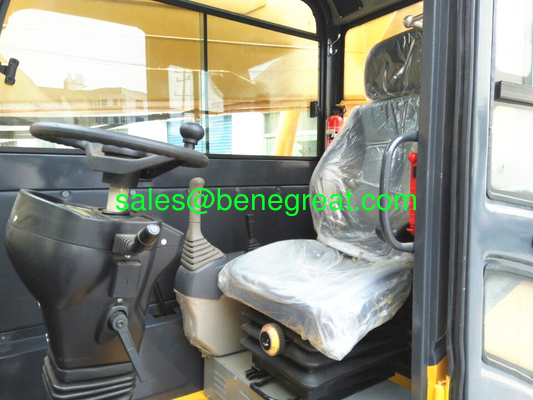

chinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heigh

A very professional company,good products and good service!

—— Kelvin ASH

It was a nice pleasant cooperation, And I hope there will be more cooperation opportunities in the future

—— Malcolm Higgins

A good team with much experience in these machines.

—— Jose E Angulo

I'm Online Chat Now

chinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heigh

China chinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heigh supplier
chinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heigh supplier chinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heigh supplier chinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heigh supplier chinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heigh supplier chinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heigh supplier

Large Image :  chinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heigh

Product Details:

Place of Origin: China
Brand Name: BENE
Certification: ISO9001
Model Number: BE2508

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: 45000USD--55000USD per unit
Packaging Details: nude packing
Delivery Time: in 45days
Payment Terms: T/T, L/C
Supply Ability: 999units per year
Contact Now
Detailed Product Description
Price: 40000USD--45000USD Engine: Cummins
Transmission: Hydraulic Load Capacity: 2500kgs
Name: 2.5ton Telehandler

chinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heigh



BE2508 Telescopic forklift



Specifications:

Item Specification Remarks
Rated load (kg)25 2500 with forks
Operating weight(kg) 8650
Max. Lifting height of the main hook (mm) 7605 Distance from the main hook to the ground
Max. lifting height of the complete arm (mm) 8000mm Front point hoist
Wheel base (mm) 2988
Front tread (mm) 1638
Rear tread (mm) 1785
Min. groud clearance (mm) 310
Overall length (mm) 5288 Without hook
Overall width (mm) 2310
Overall height (mm) 2715
Height of the cab (mm) 2400
Length of rear overhang (mm) 1055
Max. outreach of the main hook (mm) 4800 Horizontal direction
Max. outreach of the complete arm (mm) 7900 Horizontal direction
Tipping angle of hook, up/down (°) 22°/24°
Tipping angle of big arm, up/down (°) 14°/43°
Min. turning radius (mm) 6800
Max. gradeability (°) ≥20%
Max. travelling speed (Km/h) 25
Front tyre 11.00-20
Rear tyre 9.00-20
If with fork, then the load capacity will be 2.5t
chinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heighchinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heigh



Parameters:

No. Name Model Manufacturer
1 Engine 4BT3.9-C80 (60W,2200rpm) Cummins
2 Frame / BENE



chinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heighchinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heighchinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heighchinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heighchinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heigh


chinese 2.5ton telehandler 2.5ton telescopic forklift with 8000mm max lifting heigh
