| Price: | 40000USD--55000USD | Engine: | Cummins |
|---|---|---|---|
| Transmission: | Hydraulic | Load Capacity: | 11000kgs |

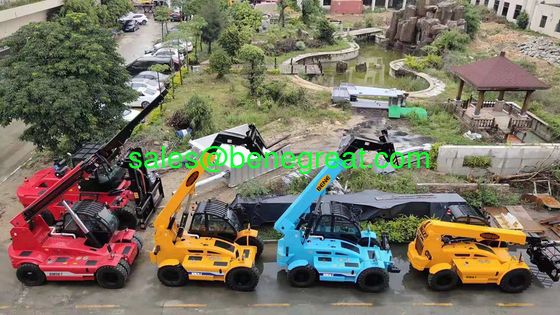

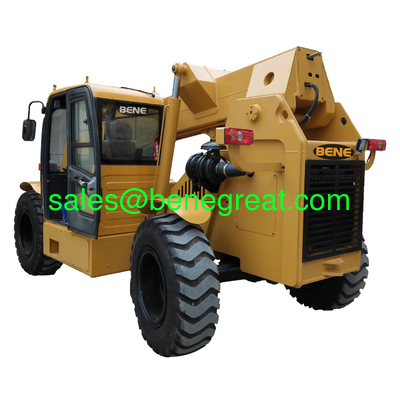

2.5ton to 12ton telehandler 3 ton telescopic forklift 4ton 4X4 WD all terrain forklift
BE25-T Telescopic Crane
Specifications:
| Item | Specification | Remarks |
| Rated load (kg) | 11000 | In main hook |
| Operating weight(kg) | 13000 | |
| Max. Lifting height of the main hook (mm) | 7605 | Distance from the main hook to the ground |
| Max. lifting height of the complete arm (mm) | 10300 | Front point hoist |
| Wheel base (mm) | 2988 | |
| Front tread (mm) | 1638 | |
| Rear tread (mm) | 1785 | |
| Min. groud clearance (mm) | 310 | |
| Overall length (mm) | 5288 | Without hook |
| Overall width (mm) | 2310 | |
| Overall height (mm) | 2715 | |
| Height of the cab (mm) | 2400 | |
| Length of rear overhang (mm) | 1055 | |
| Max. outreach of the main hook (mm) | 4800 | Horizontal direction |
| Max. outreach of the complete arm (mm) | 7900 | Horizontal direction |
| Tipping angle of hook, up/down (°) | 22°/24° | |
| Tipping angle of big arm, up/down (°) | 14°/43° | |
| Min. turning radius (mm) | 6800 | |
| Max. gradeability (°) | ≥20% | |
| Max. travelling speed (Km/h) | 25 | |
| Front tyre | 11.00-20 | |
| Rear tyre | 9.00-20 | |
| If with fork, then the load capacity will be 5t | ||
Parameters:
| No. | Name | Model | Manufacturer |
| 1 | Engine | 4BT3.9-C100 (75KW,2200rpm) | DF Cummins |
| 2 | Frame | / | BENE |
FAQ
1.What's the Certificate do you have?
BENE workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate. EPA approval can be available if needed.
2. Can you customize and design as the clients' requirement?
BENE will try our best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the first.
4. Can you produce the products labeled with the client's brand?
Yes, we do!
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery, it can be negotible according to the actual situation.
6. Delivery date:
If clients need normal products, we will deliver the products within 30 days. If clients need customerized products, the delivery date depend on the requirements.
