Engine: | WEICHAI | Transmission: | Hydraulic |
---|---|---|---|
Mast Height: | 3500mm | Color: | Blue |

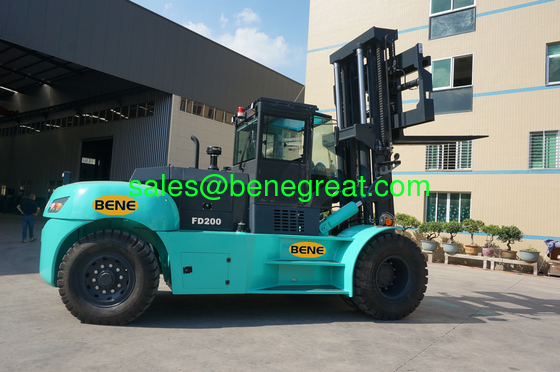

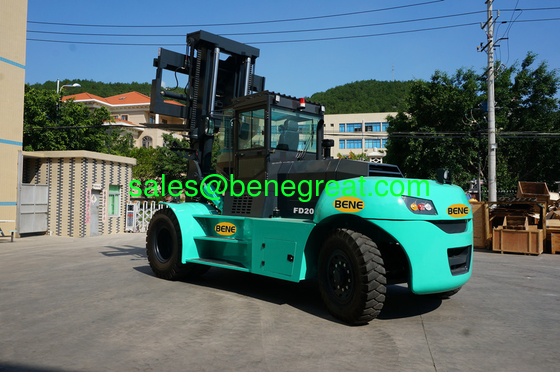

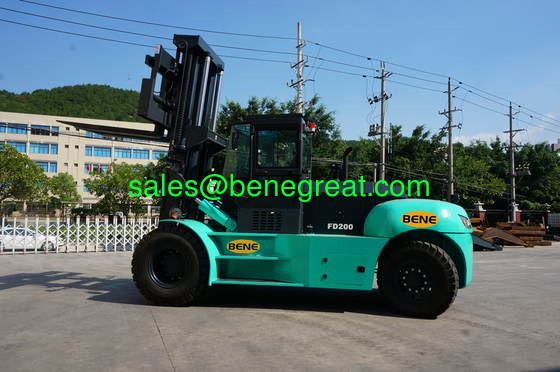

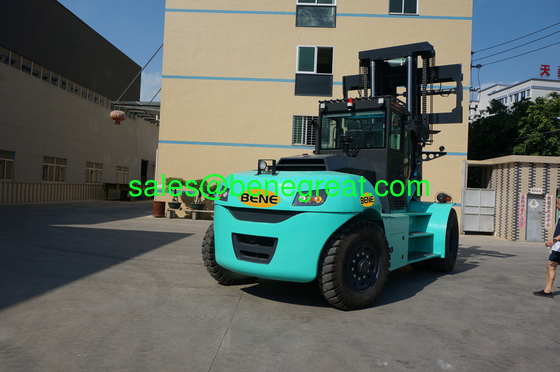

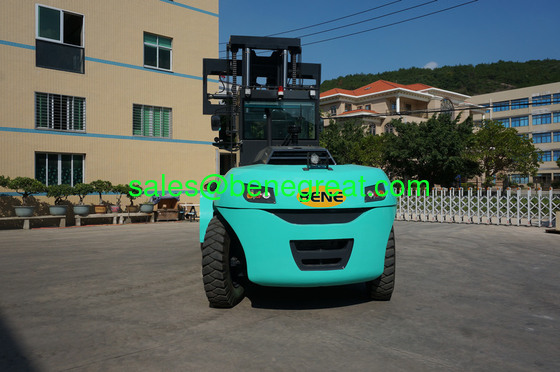

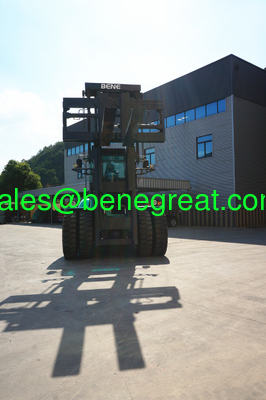

20ton heavy duty forklift FD200 with 3500mm lifting heigh 20ton container forklift CPCD200 forklift
Engine: Cummins Engine, low oil consumption, high quality turbocharged engine, good power performance, big torque reserves, has strong power, energy conservation and environmental protection
Steering axle: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable
Transmission & torque convert: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation

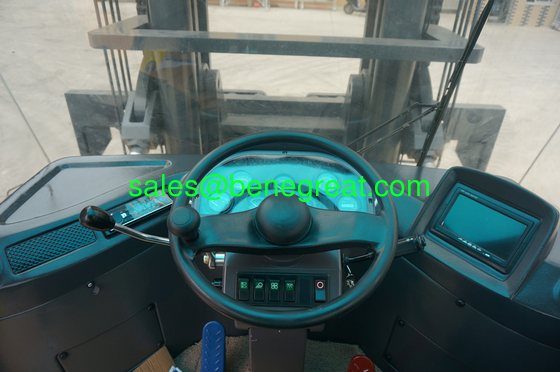

Control system: pilot valve control device to make the work efficiency and reduce drivers’ labor intensity
Hydraulic system: double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Pipeline: high pressure oil line use the famous brand, impact resistance, wear resistance and long service life
Tyre: sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable
Fork: use Cascade Fork, with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity
Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance
Speciflcation |
||||||
---|---|---|---|---|---|---|
General |
Manufa cture | BENE | ||||
Manufacture | FD200 | |||||
Power type | Diesel | |||||
Rated loading capacity | Kg | 20000 | ||||
Load center | mm | 900 | ||||
Dimensions |
Lift height | mm | 3000 | |||
Free lift height | mm | 195 | ||||
Fork size | mm | 2000×200×120 | ||||
Fork distance | Min./Max. | mm | 680/1700 | |||
Mast tilt anglc | Front/After | deg | 8/12 | |||
Front overhang | mm | 1000 | ||||
Overall dimensions |
Overall length | mm | 7120 | |||
Overallwidth | mm | 2930 | ||||
Mast lowered height | mm | 3460 | ||||
Mast extended height | mm | 4825 | ||||
Overhead guard height | mm | 3330 | ||||
Turning radius | mm | 5800 | ||||
Min.right angle aisle width | mm | 3712 | ||||
Performance | No load/Full load | Traveling Speed | km/h | 40/30 | ||
Lifting spead | mm/sec | 350/300 | ||||
Max.grade abnlity | % | 25 | ||||
Max. Pull force(full load) | KN | 125 | ||||
Self weight | kg | 30000 | ||||
Chassis |
Tread | Front | 4x14.00-24×18PR | |||
Rear | 2x14.00-24×18PR | |||||
Treadwidth | Front | mm | 1850 | |||
Rear | mm | 2130 | ||||
Wheelbase | mm | 3570 | ||||
Min.Ground clearance | Mast | mm | 260 | |||
Drive unit&control |
Battery | V/AH | 24/100×2 | |||
Engine |
Manufacture | WD10G220E11 | ||||
Manufacture | WEICHAI | |||||
Rated power | Kw/rpm | 162/2300 | ||||
Rated torque | N.m/rpm | 1460/2400 | ||||
NO.of cylinder | 6 | |||||
Bore×Stroke | mm | 126×130 | ||||
Displace ment | L | 9.726 | ||||
Fule tank capacity | L | 300 | ||||
Transmissions |
Type | L | Hydraulic | |||
Shift Front/rear | 2/1 |
FAQ
1.What's the Certificate do you have?
BENE workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate. EPA approval can be available if needed.
2. Can you customize and design as the clients' requirement?
BENE will try our best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the first.
4. Can you produce the products labeled with the client's brand?
Yes, we do!
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery, it can be negotible according to the actual situation.
6. Delivery date:
If clients need normal products, we will deliver the products within 30 days. If clients need customerized products, the delivery date depend on the requirements.
